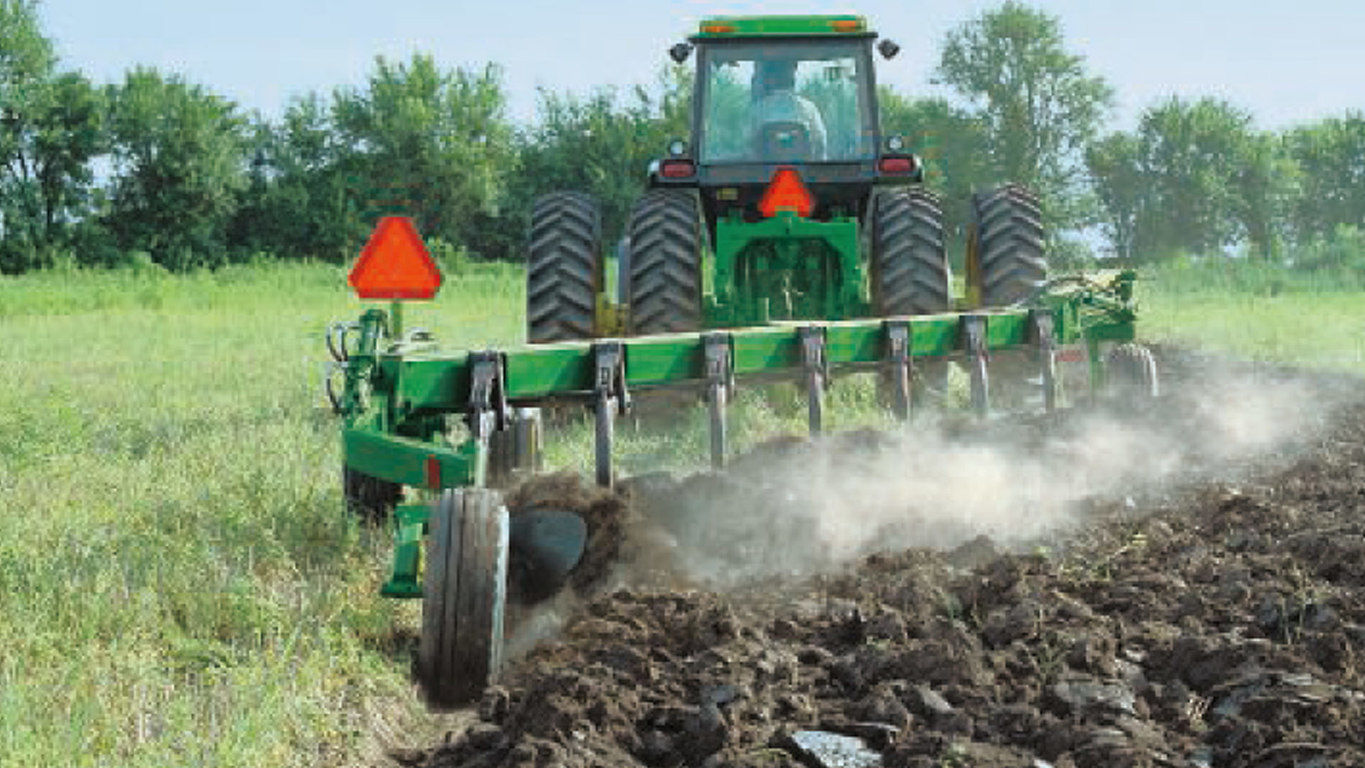

John Deere New Agriculture Tillage 3710 Moldboard Plow

High clearance handles heavy residue levels
Coulter mounting arms
Operator's manual storage container
Shear-bolt coulters suited for areas without rocks

BROCHURE

Print

Specifications

Specifications

Specifications

ADD MODEL

Add Model

ADD MODEL

Select Different Model

Specifications

Select up to 4 models to compare specifications

John Deere

3710

Moldboard Plow

Export to Excel

1 2

Key Specs

Total width of cut
Option 1	Rigid plow On land: 356 to 559 mm 14 to 22 in. In furrow: 508 to 559 mm 20 to 22 in.
Option 2	Flex plow: 356 to 559 mm 14 to 22 in.
Option 3
Option 4
Plowing depth	305 mm 12 in. 356 mm 14 in.
Horsepower required - Option 1
Option 2
Option 3
Option 4

Hitch

Type
Steering	Integral, in-furrow No Integral, on-land No Semi-integral, on-land No Drawn, in-furrow Yes: 6, 7 Drawn, on-land Yes: 6, 7, 8, 9, 10
Reversible	No

No. of bottoms

Option 1	6
Option 2	7
Option 3	8
Option 4	9
Option 5	10
Option 6
Option 7
Option 8

Total width of cut

Adjustment	Standard: Manual Optional: Hydraulic
Option 1	Rigid plow On land: 356 to 559 mm 14 to 22 in. In furrow: 508 to 559 mm 20 to 22 in.
Option 2	Flex plow: 356 to 559 mm 14 to 22 in.
Option 3
Option 4
Option 5
Option 6
Option 7
Option 8

Weight (approximate)

Option 1
Option 2
Option 3
Option 4
Option 5
Option 6
Option 7
Option 8

Clearances

Vertical	851 mm 33.5 in.
Fore-aft	864 mm 34 in.

Standards

Shearbolt	No
Safety trip	Yes
Spring reset	Yes
Hydraulic	No

Coulters

Option 1	Yes
Option 2	Yes
Option 3

Bottoms

Option 1	Plowing depth 305 mm 12 in. 356 mm 14 in. Reversible bottom - steel: 406 mm 16 in.
Option 2	Reversible bottom - steel: 450 mm 18 in.
Option 3
Option 4
Option 5
Option 6

Frame

Option 1	203x203 mm 8x8 in.
Option 2
Option 3
Expandable	No

Horsepower required

Option 1
Option 2
Option 3
Option 4

Landing

Type

Gauge wheel

Type

Tires

Type

Trashboards

Type

Additional features

Options

Additional information

Date collected
