Deluxe cargo box with optional light protectors
Top view of cargo box
The deluxe cargo box consists of a 15 percent glass-filled polypropylene composite material that eliminates rust and dents and reduces noise.
Deluxe cargo box tailgate
Tailgate handle
Tailgate open
Tailgate lowered to 150 degrees
The tailgate can be opened or removed for easier cleanout and to carry longer items. The tailgate has been improved, features truck-like performance, and can be operated with one hand.
The standard-installed lanyards can also be removed to lower the tailgate to 150 degrees for convenient loading and unloading tasks.
Deluxe cargo box tilt
Integrated handle for manual cargo box tilt
The deluxe cargo box is easier to latch, unlatch, raise, and lower with the integrated handle design and gas assist.
A prop rod is provided to hold the box in the upright position for operator convenience, as well as limit box pivot travel.
Integrated tie-down points
Integrated tie-down point in cargo-box bed
Additional tie-down points (TH 6X4 shown)
The deluxe cargo box offers integrated tie-down points for increased versatility. Tie-down points are located in the following areas:
- Four corners inside the cargo box bed
- Four points on the load guard directly behind the operator station (A)
- Tie-down bars on either side of the cargo box (B)
- Six points on the underside of the cargo box frame (circled)
Converting deluxe cargo box to a flatbed

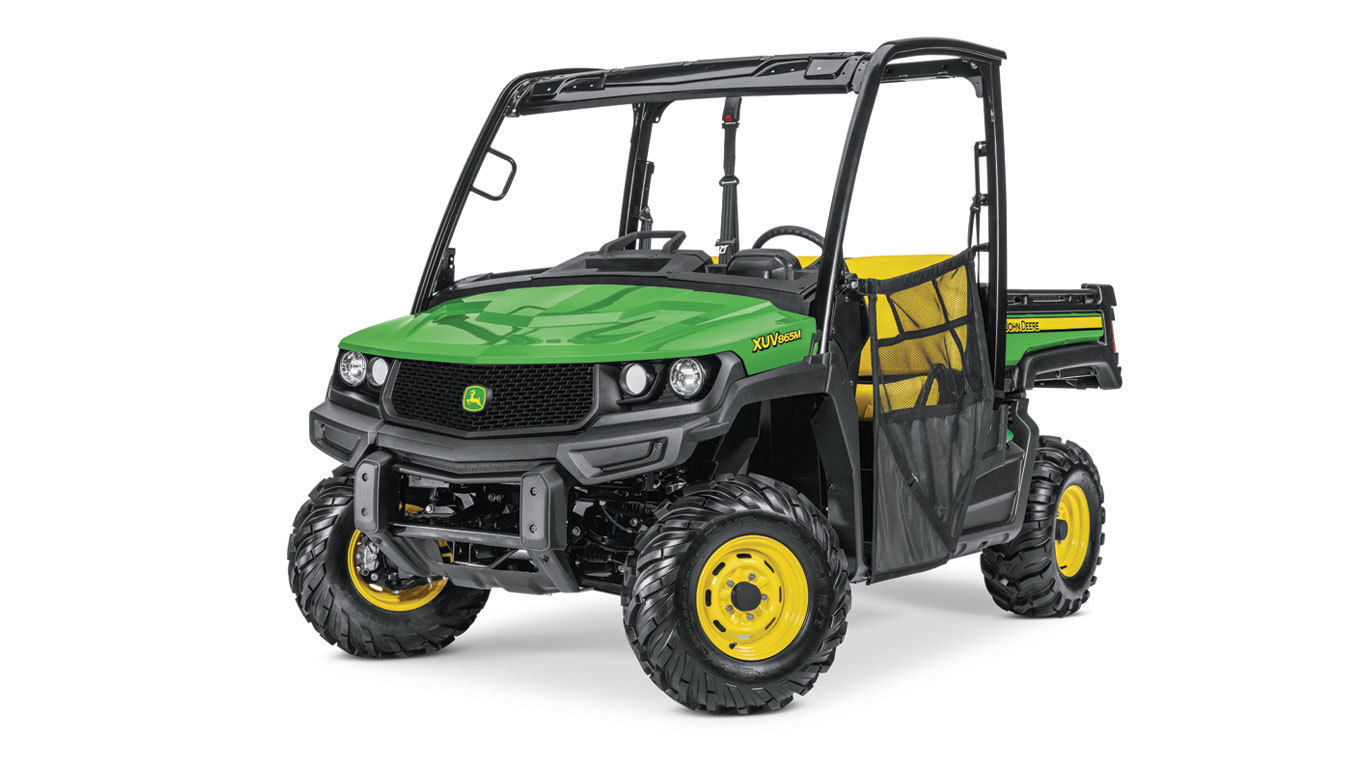

XUV835 Cab shown
XUV835M Cab shown
Optional accessories for the deluxe cargo box:
- See attachment information in the Value Selling Navigator
Specifications
| Length |
1143 mm (45 in.) |
| Width |
1320 mm (52 in.) |
| Depth |
304 mm (12 in.) |
| Volume |
0.46 m3 (16.4 cu ft) |
| Weight capacity |
454 kg (1000 lb) |
| Dump angle |
47 degrees |
CAUTION: Carrying extra-long cargo that extends beyond the box can adversely affect stability.
