DS20 Dry Nutrient Spinner Spreader Box

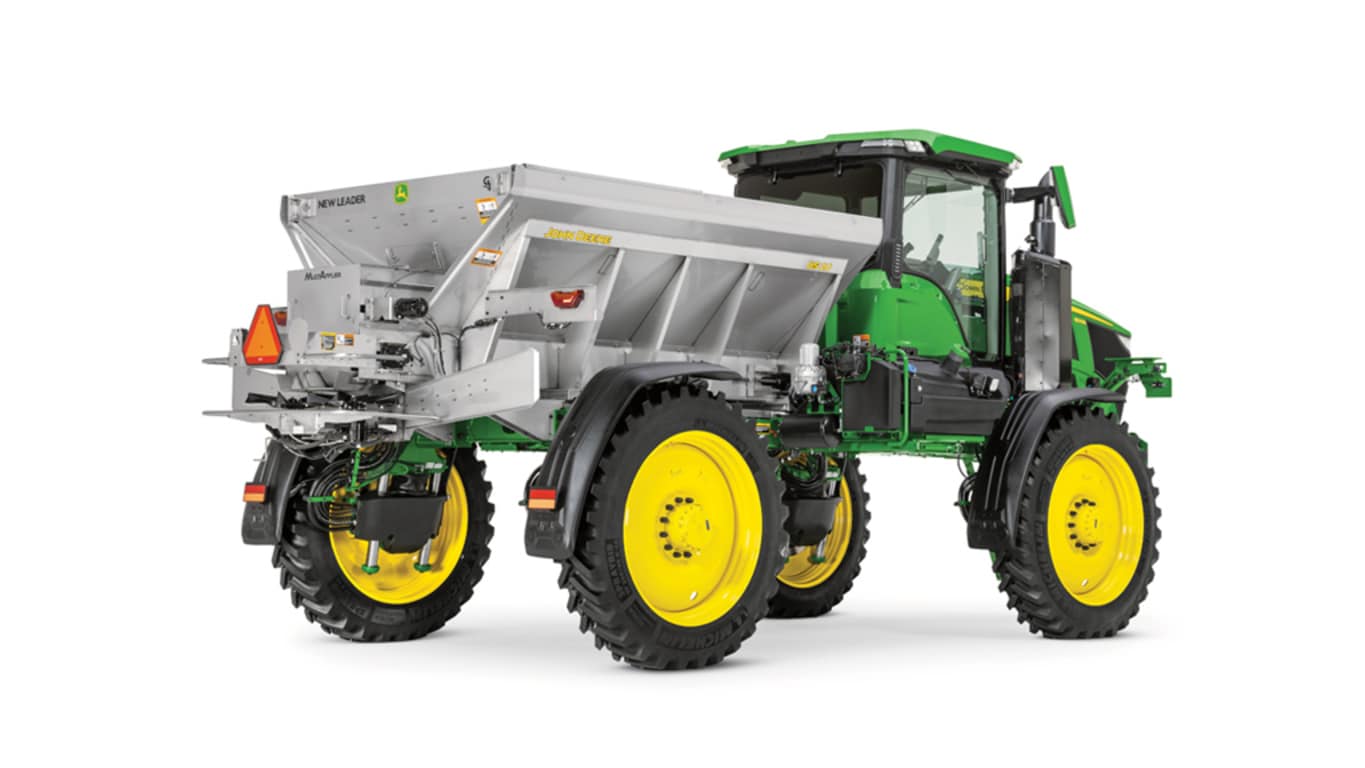

New Leader Dry Spinner Spreader on a 600R

Get three-season flexibility from your application equipment with the New Leader DS20 or DS30 Dry Spinner Spreader.

The DS20 offers of up to 5.6-m³ (200 cu ft), or 6.6 tons, of dry fertilizer, while the DS30 bumps capacity to 8.5 m³ (300 cu ft), or 9 tons, of dry fertilizer. Both models feature:

• Four-hour conversion from a liquid-application setup
• Variable-rate application ranging from 34 kg/ha (75 lb/acre) to 3 tons/acre
• Spread width of up to 32 m (105 ft) thanks to the 1.83-m (72-in.) spinner height
• New Leader G4 spinner technology for a consistent spread pattern and more uniform application
• Single or dual product bins in 304 stainless or 409 painted spreader construction with #4 belt-over-chain conveyor

Dry Spinner Spreader compatibility chart

New Leader is a trademark of Highway Equipment Company.

Spread width up to 32 m (105 ft) with the DS20

DS30 Dry Spinner Spreader

The DS20 and DS30 provide up to 32-m (105-ft) spread widths and the adjustable spinner assembly allows for quick, accurate settings during variable-rate applications, broadcasting materials farther and wider with consistent spread patterns, and producing industry-leading productivity.

Depending on product a F4365 with 1.38-m (54-in.) spinner height, can achieve spread widths from 18.92 to 27.43 m (60 to 90 ft), but with the increased clearance of 1.74 m (68 in.) the 400R and 600R Dry Spinner Spreader can achieve spread widths from 21 to 32 m (70 to 105 ft). Added spread width increases the number of acres per day and decreases the number of passes, which also reduces fuel costs and compaction.

By maintaining spread width, operators can consistently place product throughout the fields and prevent bottlenecking of product at the row end.

With a full spread pattern and reduced overlap through integrated technologies such as AutoTrac™ automated steering and John Deere Section Control, the 400R and 600R Dry Spinner Spreaders allow for full product coverage while reducing input costs from overlap.

Additionally, by combining the John Deere 400R or 600R Dry Spinner Spreader chassis and the New Leader dry spinner spreader, operators can maintain spread widths even when rpms are reduced. John Deere's pressure-and-flow-compensated hydraulics allows operators to maintain spinner speed throughout each pass, while maintaining consistent spread width and pattern. This added height allows a greater trajectory at a lower spinner speed and has the ability for later season applications.

NOTE: With differences in fertilizer density, size, and crush strength a spread pattern test is the only way to measure a product's true spread width and pattern.

New Leader is a trademark of Highway Equipment Company.

DS20 with MultApplier insert

DS30 with MultApplier insert

The optional 304 stainless-steel MultApplier insert provides machine flexibility as it can be ordered factory installed or field installed for dual product application. Bolt-in end gates and stainless-steel fittings make converting from a dual product to a single product dry spinner spreader easy. The DS20 MultApplier insert has a Bin 2 stuck capacity of 1.9 m³ (66 cu ft), offsetting the capacity of Bin 1 to 3 m³ (106 cu ft). The DS30 MultApplier insert has a Bin 2 stuck capacity of 3 m³ (106 cu ft), offsetting the capacity of Bin 1 to 4.59 m³ (162 cu ft).

The dual hopper system features two independent conveyors that can simultaneously apply up to two products at predetermined rates or variable rate application with swath widths up to 25 m (84 ft), decreasing time in the field, soil compaction, fuel consumption, and increasing return on investment..

New Leader is a trademark of Highway Equipment Company.

Run screen

400 and 600 Series Sprayers and Dry Spinner Spreaders utilize the 4600 CommandCenter and SpreadStar controller allowing integrated control with the machine and dry spinner spreader.

The CommandARM™ controls, Gen 4 CommandCenter display, and SpreadStar have been updated and tailored to the needs of operators allowing them to see all key functions on one run screen including AutoTrac™ assisted steering system, variable rate documentation, field totals, and dry spinner spreader settings.

The Gen4 CommandCenter display allows operators to set up and apply single or dual products, utilizing variable rate map-based prescriptions with John Deere Section Control functionality. Click anywhere on the display to expand and easily adjust information.

Work setup

To prepare for field application, simply press the Setup button in the bottom left corner of the display run page, and it will direct the user to the Work Setup window.

1. Select the Location box to setup operator information including farm, field, and Operator information is not required to load and execute a variable-rate prescription.
2. Select the Equipment box to do the initial setup of the machine including the number of bins in the dry spinner spreader.
3. The Work Summary box shows a link for each bin in the dry spinner spreader. The screenshot above is for a two-bin dry box. Select each one to input or change the name of the product that will be applied. Up to 24 unique names can be entered into the display for various product types such as single product, blended product, or multi-product variable rate. The operator can also choose the target rate for spreading or load a variable-rate prescription.

SpreadStar

Once the Work Setup window is complete, the updated SpreadStar application can then be used to input and setup the following:

Target spread rate

Target spread rate – selecting the target rate box allows the operator to quickly adjust three different target rates or load a prescription if needed. The target rates can be adjusted when spreading by using the corresponding buttons on the CommandARM.

Bin details

Product density/product applied – selecting either of these areas will take the user to a bin details page where more frequent dry spinner spreader inputs and adjustments are made. For dry spinner spreaders with multiple bins, individual tabs at the top of the screen make it easy to quickly toggle between them.

Features on the bin details page include:

• Bin on/off
• Bin chaining (not shown)
• Product density
• CFR value
• Feed gate opening
• Bin alarms
• Resetting bin counter
• Belt prime

Spinner settings

Spinner settings

The last step is to setup the spinner settings by clicking on the spinner settings box in the SpreadStar application. The Add Spinner preset window will come up allowing the operator to create a new preset if they choose.

Preset functions include:

• Spinner target speed
• Spinner target speed alarms
• Spread width
• Fan frame setting

The bin details and spinner settings are saved with the Work Summary details. For example, an operator with a two-bin dry spreader may need to change between a two-product variable rate to a single blend application using bin chaining. When the operator switches back to two-product variable rate, SpreadStar automatically remembers the bin details and spinner settings that were last used with that configuration.

Even with this feature, it is still important to calibrate the dry spinner spreader when changing products to ensure an accurate and consistent spread pattern.

SpreadStar dry rate control on Gen 4 4600 CommandCenter™ display

The SpreadStar dry rate control system is a standard feature that is integrated into the design of the self-propelled spreader chassis (not a third-party ISO control add-on) and delivers accurate and consistent on-target rate control. All dry spreading and vehicle functions are displayed on the Gen 4 4600 CommandCenter display for easy operation and setup. In addition to these functions, all precision technology can be used on the same display for complete integration and ease of operation. The engine, chassis, dry spreader system, and precision controllers provide central communication through the display for many vehicle and dry system functions that are simple and easy to use.

• Provides superior rate control, response times, and ease of use
• Rate control locks on to the desired application rate much more quickly and maintains it better than third-party controllers
• Easy to understand and simple to set up the key values you must enter to execute the spreading job
  • No cross reference to nodes or a task controller like other third-party systems
• High-speed hydraulic pulse-width modulated control valve varies conveyor shaft speed to produce only the required product flow with easy-to-follow feed rate calibration procedures

Engine, transmission, and hydraulic drive pump work together to optimize efficiency of the entire system, providing fuel savings and optimizing power to the ground and delivery of product to the spinners.
