Double-tie knotter system
Knotter grease block

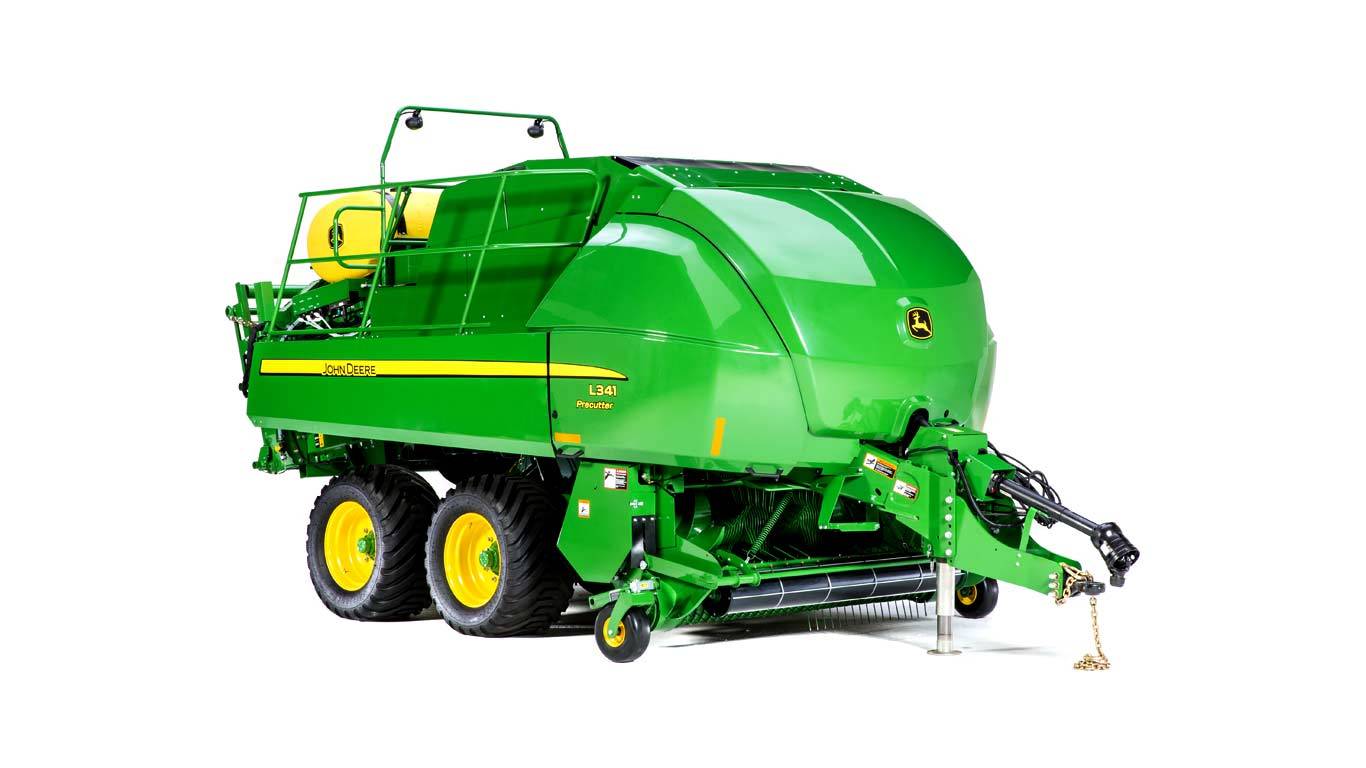

L331R and L341R Large Square Balers (LSBs) come standard with double-tie knotters.
John Deere-designed knotters are designed for performance, reliability, and reduced maintenance requirements. The auto-lube system is integrated into the knotter frames, and two internal grease ports reduce the time spent on pre-baling maintenance.
Integration of the lube system block into the knotter frame reduces the number of grease lines required for each knotter.
The integrated grease block results in a reduction in the amount of grease lines required to grease the knotter system and the number of grease line connection points. Fewer feet of grease lines and fewer connection points mean less maintenance and more time baling.
Knotting system
If service to the knotter stack is required, the knotters are positioned using an adjustment screw instead of shims. This saves time by having the ability to make adjustments at any point of assembly.
Split knotter frame
The split knotter frame is directly mounted to the intermittent gear so the frame can be removed without servicing the knotter stack.
Billhook cam
Like the John Deere single-tie knotter, the billhook cam and wiper arm plate are removable and individually serviceable. This allows replacement without replacing large castings or assemblies.
Instances where competitors must adjust the wiper arm to the billhook with a hammer, the John Deere solution allows the setting to be made with two bolts. This provides a more precise and repeatable setting, which results in more consistent knot wipe-offs.
| |
L331 |
L341 |
| Connection point reduction |
8 |
12 |
| Lube line reduction (m, ft) |
16.8 m
(55 ft) |
25.3 m
(83 ft) |
The one series LSBs store twine in single-row twine boxes. The twine is then routed to the sealed gear tensioners. The sealed tensioner gears have been proven to provide more consistent twine tension during knot formation. This increases knotter performance and consistency. Once the correct bale length is achieved, the tie system clutch is activated.
