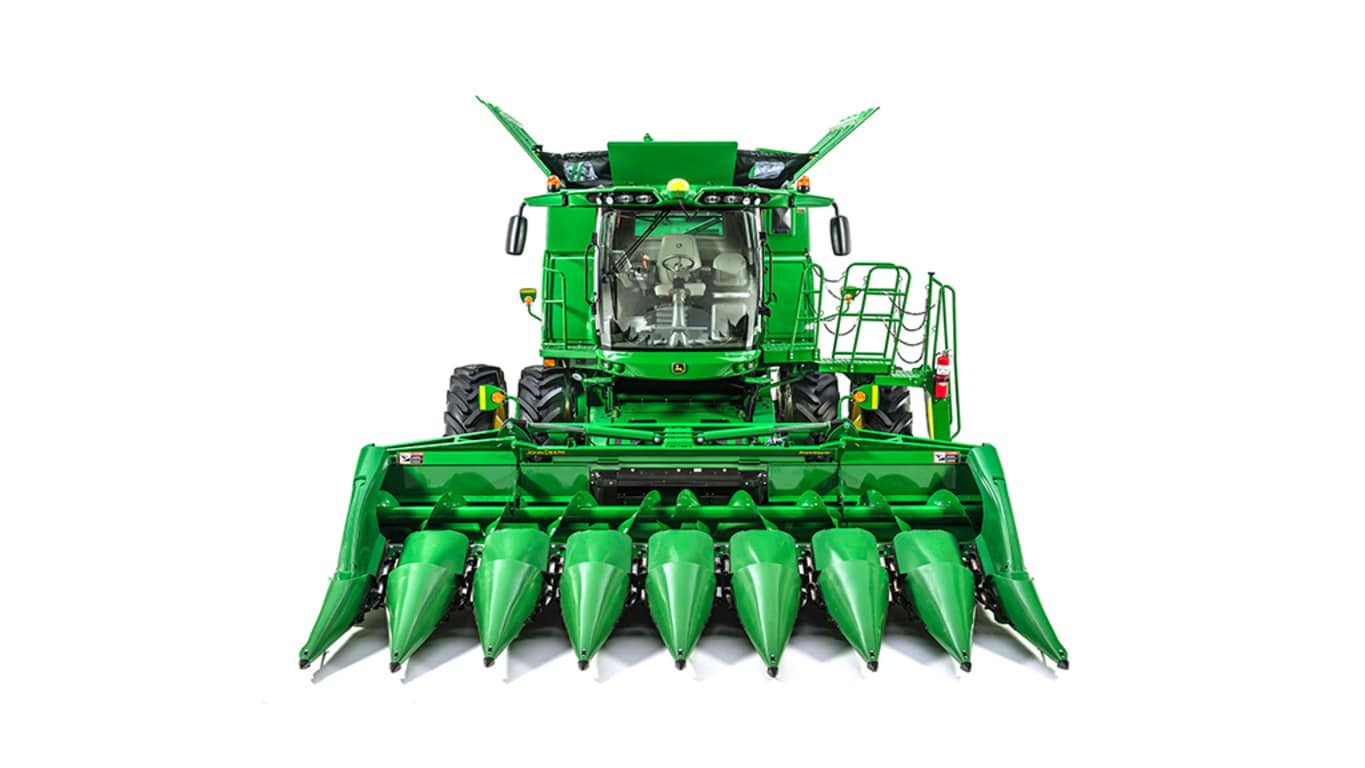

John Deere New Agriculture Combines Corn Heads C8F Folding Corn Head

Reduce transport time between fields with an 8-row folding corn head
Size residue less than 6 inches with RowMax™ Chopping Stalk Rolls
Reduce overlap and operate hands-free with optional AutoTrac™ RowSense™

BROCHURE

Print

Specifications

Specs & Compare

Specs & Compare

ADD MODEL

Add Model

ADD MODEL

Select Different Model

Specs & Compare

Select up to 4 models to compare specifications

John Deere

CF8

Folding Corn Head

Export to Excel

1 2

Key Specs

Approximate overall width	With 70-cm (27.6-in.) row spacing: 6.17 m 20.25 ft With 75-cm (29.5-in.) row spacing: 6.1 m 20.01 ft With 76.2-cm (30-in.) row spacing: 6.15 m 20.4 ft With 91.4-cm (36-in.) row spacing: 7.7 m 25.2 ft With 96.5-cm (38-in.) row spacing: 7.6 m 25 ft
Approximate folded width
Row spacings	70, 75, 76.2, 91.4, or 96.5 cm 27.6, 29.5, 30, 36, or 38 in.
Deck plate adjustment	Hydraulic adjustment
Gathering chain adjustment	Spring loaded, self-adjusting
Gathering chains	Heavy-duty, 620, endless steel roller chain with chromed pins (no master connecting link)

Corn Head

Gathering points	Four-position, low-profile floating type hinged above gathering chains
Center and outer gatherings	Hinged, quickly removable
Gathering chains	Heavy-duty, 620, endless steel roller chain with chromed pins (no master connecting link)
Minimum clearance between gathering chains and ground	32 mm 1.25 in.
Row unit drive	Enclosed, submerged-in-lubricant gearbox, driven by single input hexagon shaft
Gathering chain adjustment	Spring loaded, self-adjusting
Stalk rolls	Opposed, intermeshing, and chopping (two per row-unit)
Deck plate adjustment	Hydraulic adjustment
Slip clutch	One per row-unit plus auger drive
Trash knives	Full-length, one-piece, heat-treated steel
Stalk deflectors	Factory-installed option

Dimensions

Approximate overall width	With 70-cm (27.6-in.) row spacing: 6.17 m 20.25 ft With 75-cm (29.5-in.) row spacing: 6.1 m 20.01 ft With 76.2-cm (30-in.) row spacing: 6.15 m 20.4 ft With 91.4-cm (36-in.) row spacing: 7.7 m 25.2 ft With 96.5-cm (38-in.) row spacing: 7.6 m 25 ft
Approximate folded width	Points in operating position (lowered) 3.2 m 10.58 ft Points folded up (service position) With 70-cm (27.6-in.) row spacing: 2.6 m 8.58 ft With 75-cm (29.5-in.) row spacing: 2.6 m With 76.2-cm (30-in.) row spacing: 2.6 m With 91.4-cm (36-in.) row spacing: 3.2 m 10.58 ft With 96.5-cm (38-in.) row spacing: 3.2 m
Approximate shipping weight (includes shipping skid)	With 70-cm (27.6-in.) row spacing: 2667 kg 5880 lb With 75-cm (29.5-in.) row spacing: 4275 kg 9425 lb With 76.2-cm (30-in.) row spacing: 2917 kg 6431 lb With 91.4-cm (36-in.) row spacing: 2764 kg 6094 lb With 96.5-cm (38-in.) row spacing: 3965 kg 8741 lb
Row spacings	70, 75, 76.2, 91.4, or 96.5 cm 27.6, 29.5, 30, 36, or 38 in.
Standard weight	With 70-cm (27.6-in.) row spacing: non StalkMaster™ 2670 or StalkMaster 2917 kg 5886 or 6431 lb With 75-cm (29.5-in.) row spacing: non StalkMaster 2658 or StalkMaster 2764 kg 5860 or 6094 lb With 76.2-cm (30-in.) row spacing: non StalkMaster 2575 or StalkMaster 2829 kg 5677 or 6237 lb With 91.4-cm (36-in.) row spacing: non StalkMaster 2760 or StalkMaster 3074 kg 6085 or 6777 lb With 96.5-cm (38-in.) row spacing: non StalkMaster 2487 or StalkMaster 2667 kg 5483 or 5880 lb

Additional information

Date collected	15 June 2020
