H120 Loader

Quik-Park™ loader mounting system

The Quik-Park mounting system on the H120 Loader is designed for easy removal and mounting to and from the tractor without tools.

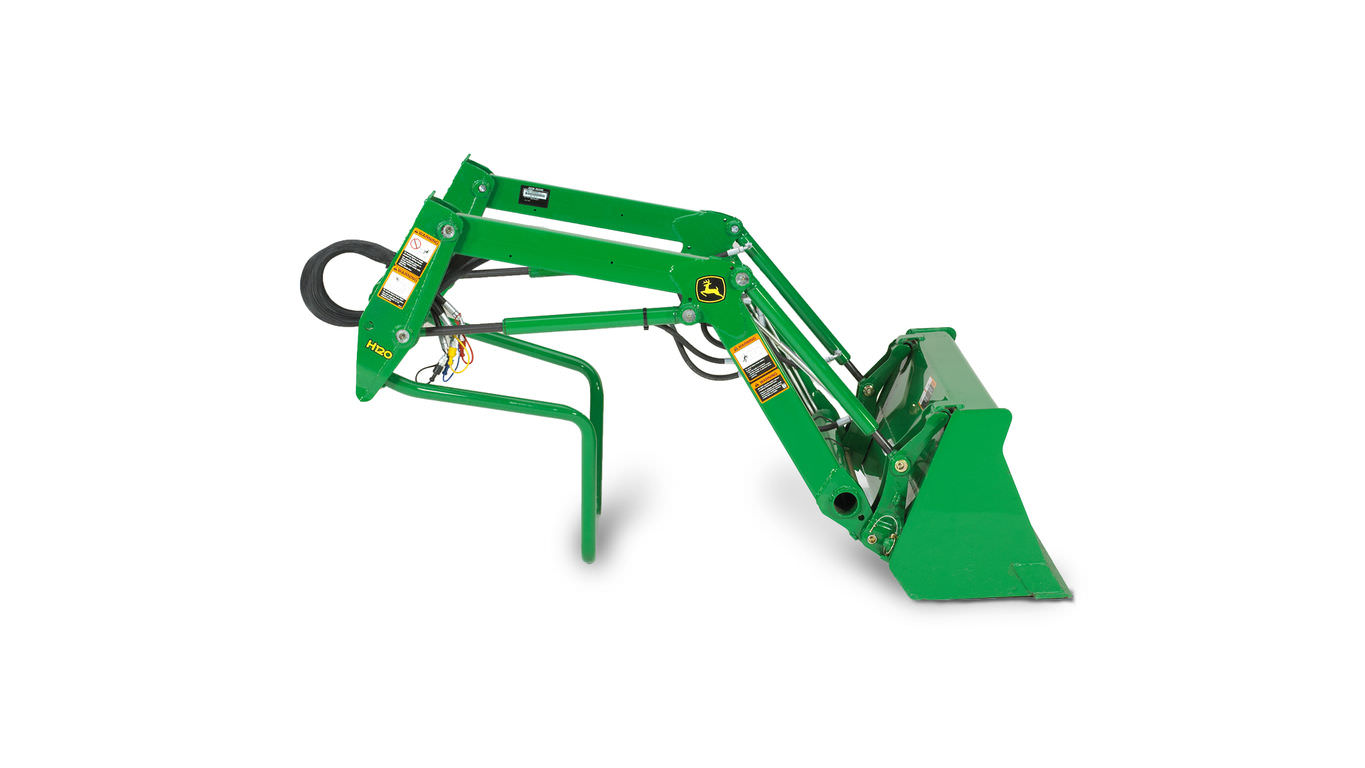

Similar to that of the H130 and former 200CX Loaders, the H120’s parking stand is attached to the mast. To lower it into the park position, simply move the joystick to the raise position once the latches are opened.

To view a video of how the Quik-Park™ system works click here.

NOTE: This video only shows the dismount and mount of the loader without disconnecting the hydraulics. To completely remove the loader, the operator must turn the tractor off, relieve the hydraulics, and then disconnect the hoses from the couplers.

Easy removal and mounting (shown on a noncurrent 1026R)

Mount to and from the tractor without tools

Pivot pin

The unique offset head design eliminates cross-pins and cotter pins to retain the pin.

A nut ensures the pins remain in position.

A lubrication groove provides a path for lubrication.

End-of-pin lubrication allows easy access for servicing grease points, which are visible from the side of the loader.
