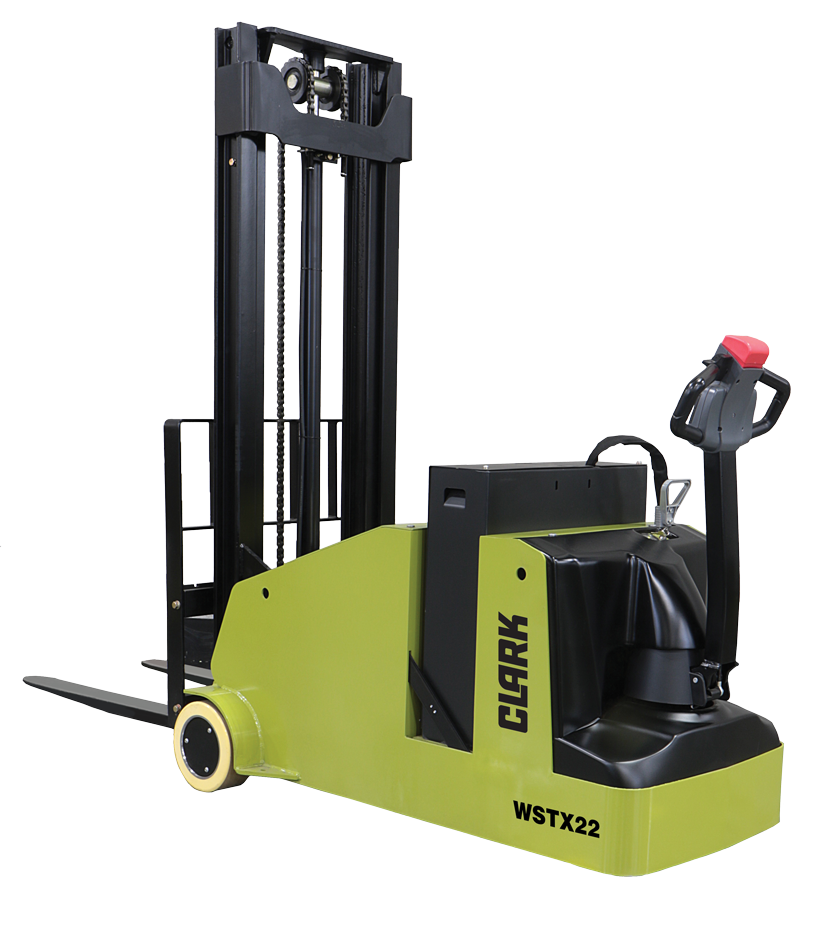

CLARK WSTX22 is a power-packed electric walkie pallet stacker with a lifting capacity of up to 2200 lbs.
KEY FEATURES & SPECIFICATIONS
Key Specs
- WALKIE-PALLET-STACKER
- 24V Electric
- 2200 lbs (998 kg)
Key Features
- HYDRAULICS - Lift cylinder is hard chrome and the Pump unit includes motor, gear pump, and solenoid.
- ELECTRICAL - Regenerative braking and brushless design drastically reduces maintenance.
- BRAKES - Electromagnetic brake is mounted on motor armature shaft multiplying the braking power through the transmission. Neutral braking resists roll back on ramps.
- CONTROLS - Travel, lift, lower and tilt functions are located in the ergonomic operator handle, designed to allow operation with either hand. Angle grips are designed to allow easy operation with either hand. Low mounted tiller arm offers excellent operator comfort and minimum steering effort.
- TRANSMISSION - State of the art optimized gear technology supplies advantages such as minimal envelope circle, zero maintenance, low noise level, high efficiency and high performance.
- ACCESSIBLITY - Removal of two-piece power head cover exposes major components for inspection and maintenance. Drive wheel is removed with one nut.
- BEARINGS DRIVE WHEEL - Tapered roller bearings sealed in oil bath LOAD WHEELS-Sealed ball bearings
