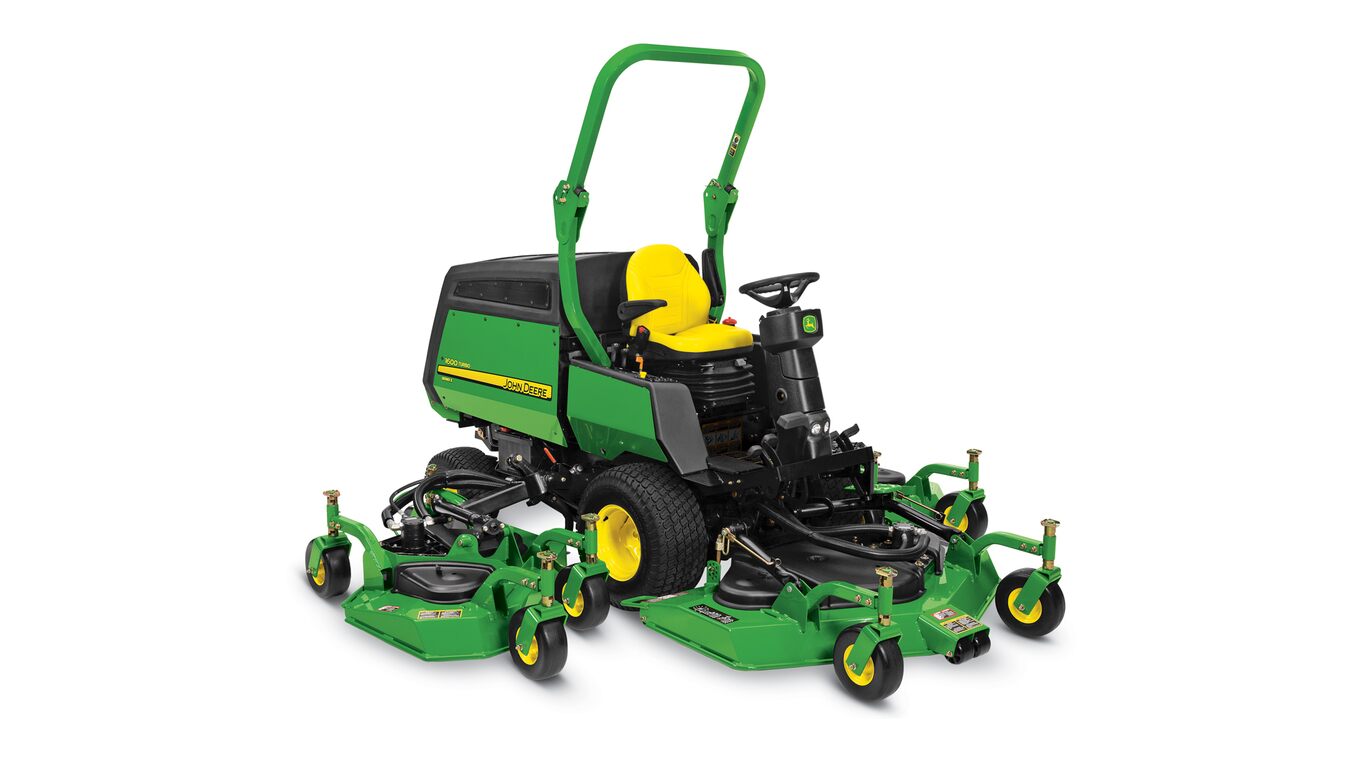

Wide-area mower (WAM) top view
WAM front view with side mowers raised
128 in. (325.1 cm) with both wings down
94 in. (238.8 cm) with center deck and either side deck down
Front and side mowing
62 in. (157.5 cm) with center deck only
The 1600 Turbo Series III WAM is equipped with a 62-in. (157.5-cm) center deck and two 42-in. (106.7-cm) wings. Cutting widths are 128 in. (325.1 cm) using all three decks, 94 in. (238.8 cm) using the center deck and either wing deck, and 62 in. (157.5 cm) with the center deck only. All decks are rear discharge. Wings fold for transport and reduce the machine’s width to a narrow 84 in. (213 cm), so it can easily be driven along golf-cart-size paths or fit on a trailer. The wing decks will float 45 degrees above horizontal and 20 degrees below horizontal, following the ground contour.
Underside of 62-in. (157.5-cm) deck
Side view of 42-in. (106.7-cm) deck
All decks have a unique baffling system that reduces clumping and provides even clipping dispersal for exceptional appearance.
Features common to these rear-discharge mower decks include:
Patented impact-absorbing system
Patented impact-absorbing system
A patented impact-absorbing system is provided:
- This exclusive feature allows the wing decks to move rearward and inward when contacting obstructions such as trees, curbs, or other solid objects to prevent damage.
- Mowers are safety certified (meaning that mowers have been evaluated by the manufacturer [John Deere Turf Care] and conform to American National Standards Institute [ANSI] B71.4 Safety Certification Specifications for Commercial Turf Care Equipment).
Isolated deck motor design
Isolated deck motor design
The isolated deck motor design consists of three cast-iron mounting structures for the deck motors. Rubber isolators that are similar to engine mount isolators are located between the castings and the deck shell brackets.
The rubber isolators allow the castings to flex relative to the deck shell. The addition of the isolators stops the vibration path between the hydraulic motor and the deck shell, thus preventing the amplification of sound by the deck shell.
Deck motors
Deck motor
D Series deck motor
- Radial case drain
- Pressure balanced bronze-on-steel thrust plates
- Flexible configuration of shaft, flange, and ports
- One-piece steel gears with 12-tooth profile
- Heavy-duty, low-friction sleeve bearings
- Integrated dust protector
- High-strength ductile iron body and covers
- High-temperature Viton® rubber shaft seals
- Figure 8 monolithic high-temp load seals
The deck motors are capable of withstanding high pressure requirements for all-day mowing. Motors have Viton seals, which can withstand higher hydraulic temperatures. The motor contains a dust seal to help eliminate debris from entering into the hydraulic connections.
Lift valve
Lift valve
The lift valve controls the cylinders that lift and lower the decks. It also controls the axial piston deck-motor pump (turns it on and off).
Mow valve
Mow valve
The mow valve controls the hydraulic flow to the wing deck circuits.
Mower mulch kit available
WAM mulch kit illustration
WAM mulch kit illustration
A mulch kit is available as an attachment for field conversion. The mulch kit includes unique mulch blades, baffles, and a deflector shield to produce smaller clippings, which decompose faster than un-mulched clippings. Operators should follow the one-third rule when mulching grass.
This mulch kit also does an excellent job when mulching leaves.
BTC10335 TriCycler Mulching Kit
NOTE: Applicable for serial numbers starting with 1TC1600TPBT100007 and higher, model year 2012 and newer.
