John Deere 455 Front-Folding Grain Drill

NZ John Deere New Agriculture Seeders Box Drills John Deere 455 Front-Folding Grain Drill

A drill's residue-handling capabilities rest largely on its opener. In fields with minimal residue, the doubledisk opener on the 455 Drills works well.

Patented active hydraulic down-pressure system
Double-disk furrow openers
Seedbox capacities
Grass seed attachment

BROCHURE

Features

Features

Expand All Collapse All

Seedbox capacities

Seedbox

Three-position combination grain/fertilizer box

Seed boxes have a large capacity for longer intervals between stops for refilling.

Plain grain or combination grain/fertilizer seed boxes are available to match the producer's needs.

The versatile grain/fertilizer box has a three-position divider that can be set for 100 percent grain, 60 percent grain, or 40 percent grain.

Seedbox capacities
	Plain grain	Combination grain/fertilizer Three-position divider
	Plain grain	100 percent grain	60 percent grain	40 percent grain
Grain, L/m (bu/ft)	324 (2.8)	320 (2.76)	168 (1.82)	152 (1.35)
Fertilizer, kg/m (lb/ft)	---	---	168 (113)	226 (152)
Total, L/m (bu/ft)	324 (2.8)	320 (2.76)	3.4 (393)	3.4 (393)

The bulkheads in the seedbox reduce material shifting in the box for increased seeding efficiency.
A sight glass, located near the end of the box, allows the operator to view seed level at a glance.
Steel footboards with 25.4-mm (1-in.) diameter perforations allow convenient, safe access to the seed/fertilizer boxes.
In-line box design allows quick and easy filling.

A grass seeder attachment is available (see attachments in the Ag Sales Manual). The grass seeder attaches to the front of the seedbox and is commonly used for grasses and alfalfa.

Tank shield plates are available from Parts (see attachment for field conversion),

Protects box-end panels from damage
Ideal for operating in very irregular terrain, where box panels could contact each other

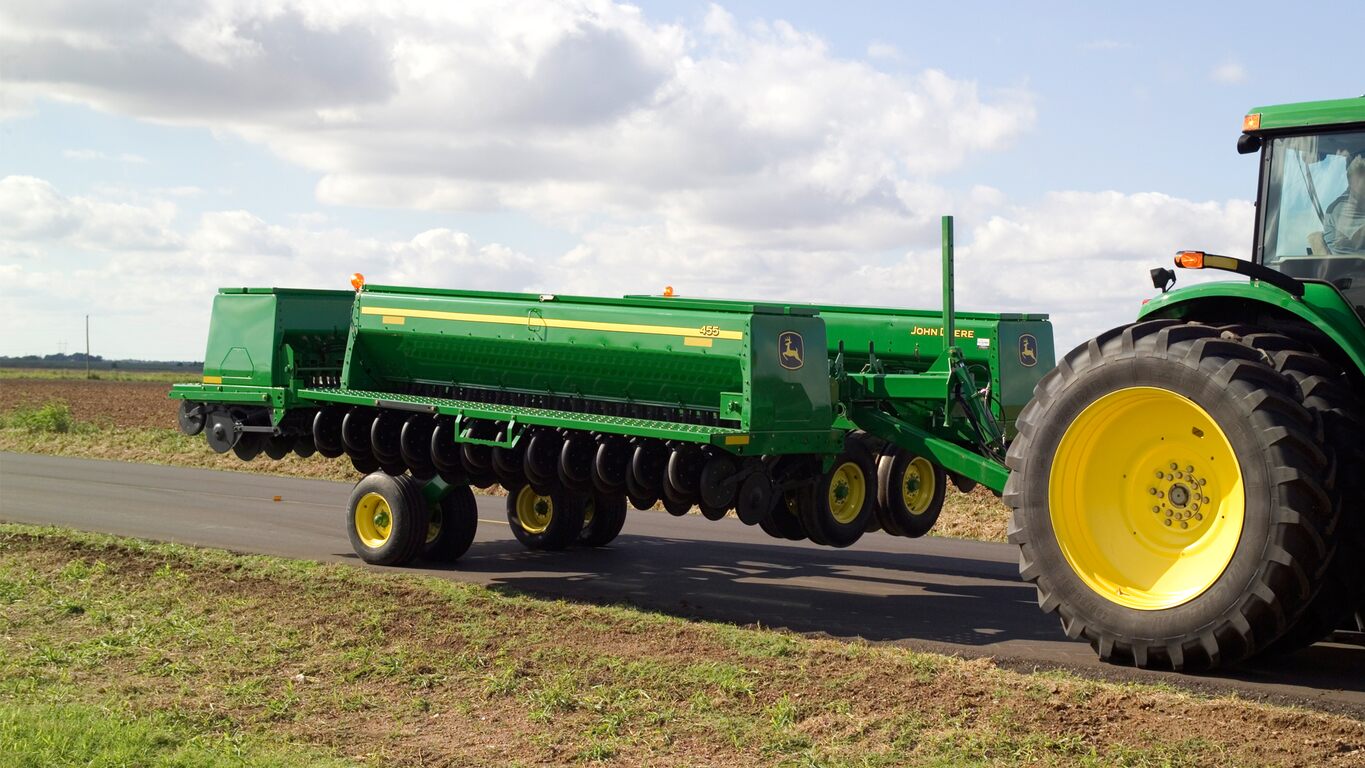

Front-folding frame allows for narrow transport

Narrow road transport

A fully hydraulic front fold/unfold system makes folding on the 455 Drills, for transport a true one-person operation.

Requires less than 5 minutes to fold or unfold
Transport width is narrow as 4.6 m (15 ft, 2 in.)

High opener transport clearance allows moving over ditches, railroad crossings, and other trouble spots without worry.

Opener to road clearance:

533.4-mm (21-in.) on 9.15-m (30-ft) and 10.7-m (35-ft) models
457.2-mm (18-in.) on 7.6-m (25-ft) model

Units are raised and lowered for transport with standard equipment-lift cylinders:

Two 76.2-mm x 203.2-mm (3-in. x 8-in.) cylinders on 7.6-m (25-ft) drill
Two 88.9-mm x 254-mm (3.5-in. x 10-in.) cylinders on 9.15-m (30-ft) and 10.7-m (35-ft) drills

There are four frame-mounted tires: 11L-15, 10 PR rib implement on all three drill sizes.

Warning lights are in base equipment for improved visibility when transporting.
