John Deere D630 Draper

D600 Draper and interchangeable rotary platform

D600 Draper has an interchangeable rotary platform:

• Interchangeable on W200M and R Series units in 30 minutes or less
• Growers can use one traction unit for harvesting both small grains and hay

Center-driven belts

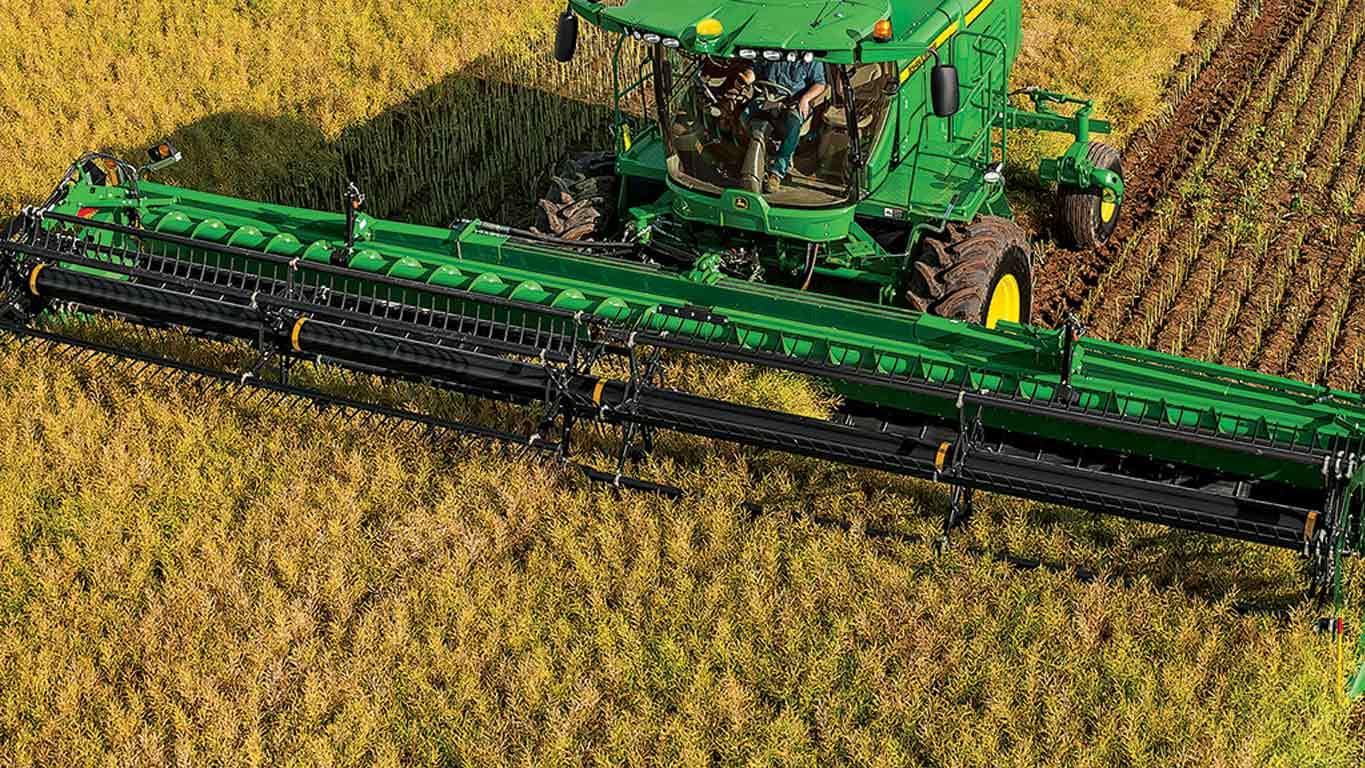

D600 Draper on W235 Windrower

• Deliver increased torque
• Enable greater productivity with minimal belt slippage
• Increase performance in heavy crop conditions

Red circles point out the location of the belt drive motors

• Draper belts on the D600 are driven from the center of the platform
  • Delivers increased belt performance compared to drapers with end-driven belts

Belt drive motors

Motor driving the left-hand belt

Motor driving the right-hand belt

Due to the motors pulling the belt (instead of pushing in an end drive system), there is less slack in the belt. This delivers an increase in belt torque.

As a result, producers experience minimal belt slippage and increased performance in heavy crop conditions due to the center-driven belt system.

D600 Draper

The D600 Series includes an improved cam reel that increases durability in heavy crop conditions. The dual cam drive offers more versatility for operators to match their crop conditions and offers more reel torque for heavy crop conditions. The system can be quickly reconfigured by changing quick couplers to offer a series configuration for a higher reel speed to meet the needs of lighter crop conditions.

.

D600 Draper teeth

• Easy reel tooth replacement is done with a 90-degree turn using a wrench. It allows the reel tooth to be removed and replaced.
• Additional teeth can be added at any location along the extruded tooth bar.

Sales, parts, and service support from a local John Deere dealer offers overnight parts delivery and a well-trained support staff.

D600 Draper on windrower

The draper hydraulic pump control adjusts knife, belt, and reel speeds to match the ground speed. This provides consistent feeding as you move through the field.

John Deere D625, D630, and D636 Drapers can windrow out of the center, right, or left ends of the draper with the press of a button using the hydraulic shift option (double swath package).

• Larger windrows to match combine or self-propelled forage harvester
• Match narrower-width drapers with higher-capacity harvesting
• Place higher-density windrows in front of harvesters when yields are low
• Discharge two windrows side by side for uniform combine or forage harvester feeding

First pass with right discharge

Second pass with right discharge

Third pass with left discharge

Center discharge
