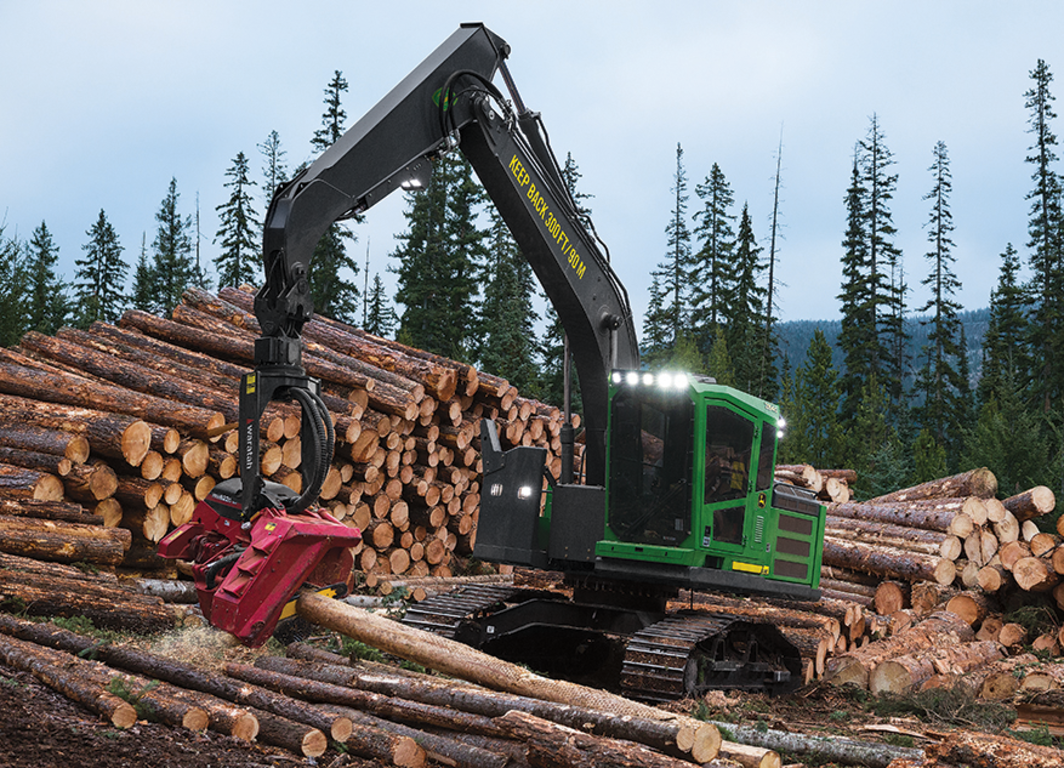

2154G Swing Machine
2154G Swing Machine
Peak Power: 122 kW (164 hp) at 2,000 rpm
Max. Hydraulic Flow: 212 L/m (56.0 gpm) x 2
Swing Torque: 74 376 Nm (54,857 lb.-ft.)
Drawbar Pull: 22 634 kgf (49,900 lbf)
SPECIFICATIONS
Print
Specifications
Specs & Compare
Specs & Compare
CLOSEST COMPARISON
--Please Select--
ADD MODEL
--Please Select--
Add Model
CLOSEST COMPARISON
--Please Select--
ADD MODEL
--Please Select--
Select Different Model
Specs & Compare
Select up to 4 models to compare specifications
John Deere
2154G
Swing Machine
Export to Excel
1
2
DESCRIPTION
Reference Stick size, mm (inches)
2900 (114)
DRIVELINE
Engine Manufacturer
John Deere
Engine Model
PowerTech PVS 6.8 L
Displacement, ltr (InchesĀ³)
6.8 (415)
Engine Output, kW (hp)
122 (164)
Engine Output - Net, kW (hp)
122 (164)
Carrier Rollers - Each Side
2
Track Rollers - Each Side
8
Track Shoe Width, mm (inches)
600 (24)
Track Shoe Width - Option, mm (inches)
710 (28)
DIMENSIONS
Overall Length, mm (ft/in)
9830 (32 ft 3 in)
Transport Height, mm (ft/in)
3780 (12 ft 5 in)
Overall Width, mm (ft/in)
3280 (10 ft 9 in)
Overall Track Length, mm (ft/in)
4450 (14 ft 7 in)
Track Length On Ground, mm (ft/in)
3660 (12 ft )
Tailswing Radius, mm (ft/in)
3100 (10 ft 2 in)
Ground Clearance, mm (ft/in)
700 (2 ft 4 in)
Width Over Tracks, mm (ft/in)
3280 (10 ft 9 in)
Track gauge, mm (ft/in)
2620 (8 ft 7 in)
Dig Depth SAE, mm (ft/in)
5640 (18 ft 6 in)
Horizontal Reach, m (ft/in)
9.86 (32 ft 4 in)
Dump Height, mm (ft/in)
8330 (27 ft 4 in)
CAPACITIES
Fuel Tank, ltr (gallons (US))
800 (211)
Hydraulic Tank, ltr (gallons (US))
136 (36)
PERFORMANCE
Ground Bearing Pressure, kPa (PSI)
61.5 (8.92)
Slew Torque, kNm (lbf / ft)
74.376 (54857)
Travel Speed, kph (mph)
4.8 (3)
Lift capacity at max reach, kg (lbs)
5770 (12710)
Pump Type
Variable Axial Piston
Pump Flow, lt/min (gallons (US) / min)
236 (62.3) x 2
Relief Pressure, kPa (PSI)
34300 (4975)
Boost Pressure, kPa (PSI)
38000 (5511)
WEIGHTS
Operating Weight, kg (lbs)
28000 (61730)
