4640 Universal Display

Performance:

• Enhanced data merging functionalities to increase on-board/off-board flexibility
• Improved data capturing capabilities to more precisely map and operate section control
• Precisely apply multiple products simultaneously with individual coverage maps and application points

Uptime:

• Setup and startup operations easily with improved display navigation

Cost of operation:

• Improved Gen 4 applications such as AutoTrac™ assisted steering system, Section Control, and documentation increase producer profitability all with a moveable display experience

Hardware

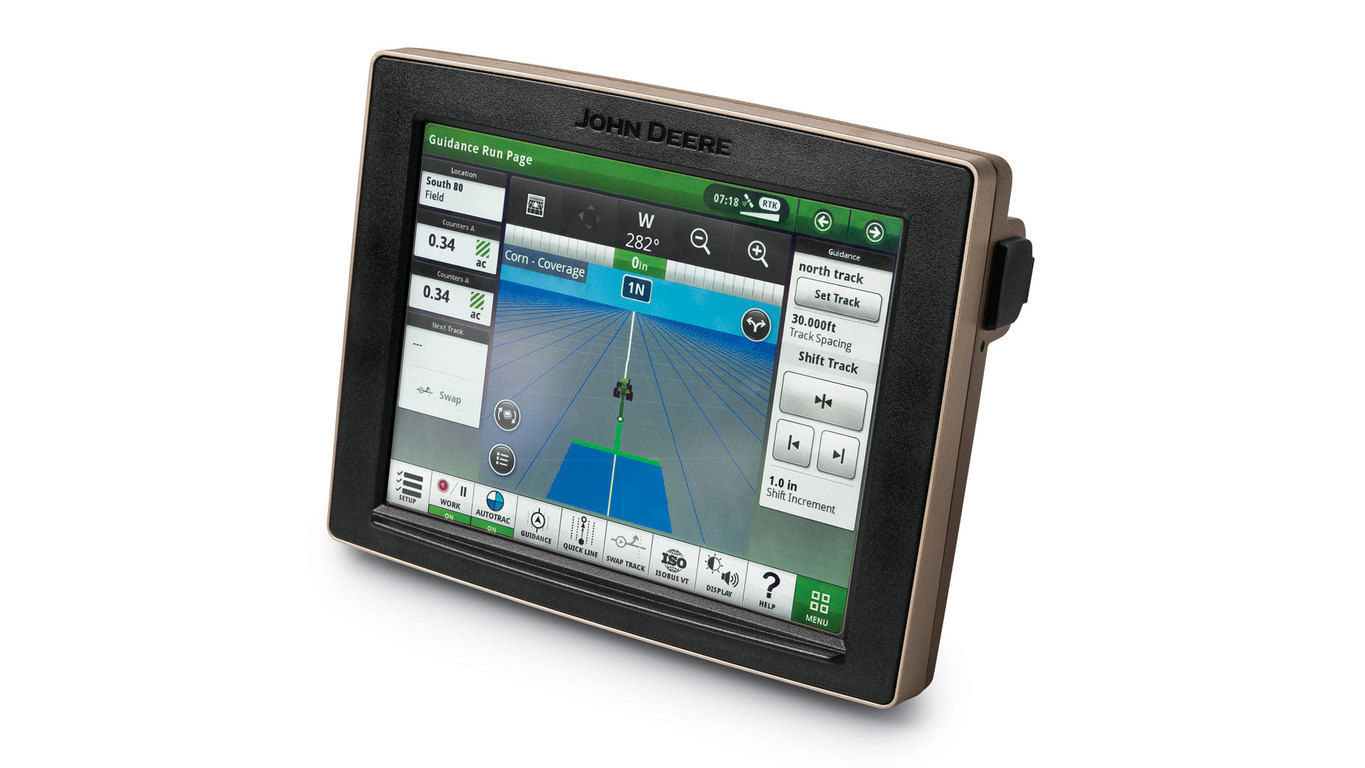

The 4640 Universal Display hardware consists of a 264-mm (10.4-in.) touchscreen display.

A. Power button

On the back side of the 4640 is the power button. The power button has two primary uses:

1. Operation flexibility - ability to power off the display when the machine needs to remain running

2. Display reset - if a hard reset is needed to re-boot the display, the operator can do so without keying off the machine by pressing the power button for more than 4 seconds

B. External USB adapter port

C. Ethernet port

Ethernet connectivity is required for Remote Display Access (RDA).

D. Extended monitor port

A port is available on the backside of the 4640 Universal Display for connection to a secondary monitor, providing Gen 4 Extended Monitor compatibility.

E. Antennas

The green antennas are located externally for connectivity purposes. The operator will not need to adjust these antennas after receiving the 4640 Universal Display. Antenna positioning does not affect operating performance.

F. Machine connector

The machine connector port is the harness connection point for the machine and the 4640 Universal Display.

G. Video connector

The 4640 Universal Display has video connection. The operator will have the ability to view the live video on the display. The camera (video observation system) is available through JD Parts and ag and industrial (A and I) products.

Status light-emitting diode (LED) indicator

An LED indicator light has been added for quicker diagnostic understanding and is located on the right side of the display, below the integrated USB ports. The LED is has three colors; red, orange, and green. The following definitions are used to classify when each color should be shown:

• Red – failure mode
• Orange – processing/booting
• Green – all systems operating normally

Integrated USB ports

The 4640 Universal Display provides two integrated USB ports on the side of the display.

Display layout and navigation

A. Menu

B. Shortcut soft keys

C. Next or previous run page

D. Gen 4 Extended Monitor swap button (If equipped)

E. Run page

F. Title bar

G. Status center

Status center

The status center is located in the title bar and highlights important information for display functions, such as global positioning system (GPS) signal strength and notifications.



Select status center to display additional information in a drop down window. The expanded status center provides quick access to notifications and settings.

Machine Settings tab

The Machine Settings tab allows the user to view and edit:

• Maintenance and calibrations

System tab

The System tab allows the user to view and edit:

• Date and time
• Diagnostics center
• Display and sound
• File manager
• Language and units
• Software manager
• Users and access

Applications

The Applications tab allows the user to view and edit:

• AutoTrac guidance system
• Calculator
• Equipment manager
• Fields and boundaries
• Help tool
• ISOBUS tasks
• ISOBUS VT
• Layout manager
• Mapping
• Remote access
• Section Control
• Settings manager
• Starfire
• Video
• Work monitor
• Work setup
• Work totals

Layout Manager

The 4640 features a modular-designed layout manager, so operators can easily create the page views that meet their needs. From the factory, machines are equipped with one guidance default run page. Run pages can be created and stored within the All Run Pages tab with no limit. A maximum number of 10 run pages can be added to the Active Set. The Active Set provides the ability to toggle through selected pages on the main screen. Toggling between run pages is as easy as swiping the screen or using the arrow buttons on the top right portion of the title bar.

Users and access

Users and access allow the owner or manager to lock out certain functions to prevent operators from accessing or changing settings. Lock-out functions are managed with a defined pin for the administrator.

The 4640 Universal Display can be set to one of two profiles, administrator or operator. The administrator profile is always set to the full access group. This group allows unlimited access to all of the features and has the ability to lock and unlock features in the operator profile.

For users concerned with security there is also the secure pin code. This allows an administrator to require a passcode for any access to the display upon startup. Enabling this feature can help ensure that only the access the administrator approved is used on the display.

On-screen help and diagnostic text

There are a number of different ways to get meaningful on-screen help when navigating the 4640 Universal Display. The help icon is located on the default shortcut bar on the bottom of the run page. This icon gives detailed information of all contents of the operating system. Simply select the help icon and navigate to the information section that is needed.



Additionally, application-based help is also available in all locations of the 4640 Universal Display. Simply click on the {i} icon available on the title bar to see more information on the application currently being used.



Diagnostic text and information throughout the operating system is available for better understanding of whether applications are operating as directed.

Flags

Mark areas of the field that need special attention or items that need to be addressed such as rocks, tile lines, or weed pressure. Flags previously recorded on the Gen 4 or GS3 2630 Display can be transferred between displays to ensure each operator is aware of upcoming field obstacles.

Dual display

John Deere 4640 Universal Display may be configured to run with GreenStar 3 and Gen 4 CommandCenter™ displays on machines approved in the machine compatibility section.

An additional extended monitor is also compatible with the 4640 Universal Display.

Voyager is a trademark of ASA Electronics, LLC.

Work monitor

The work monitor application displays the performance information about the task being performed by the machine. The user is shown averages, totals, and productivity of the machine, such as area worked, average working speed, and fuel usage. The values of the work monitor can be reset by the user at any time. Specific values of the work monitor can be configured by the user to be shown on a run page.

NOTE: The work monitor application replaces values found in the universal performance monitor with the GreenStar™ 3 (GS3) 2630 Display.

Video capability

4640 Universal Displays are equipped with four video inputs. The operator has the ability to set a variety of triggers to activate the camera. The image will then appear on the 4640 Display. The camera (video observation system) is available through JD Parts. When used with a Gen 4 Extended Monitor, two independent camera views can be monitored simultaneously on each display. All harnessing, inputs, outputs, and software support Voyager® camera systems. Other camera systems will require third-party harnessing and converter for use.





John Deere 4640 Universal Display subscription model provides John Deere precision ag operators more choices in how they purchase precision ag applications. This gives flexibility in selecting the level of subscription that matches the operators’ needs year by year. John Deere AutoTrac™ and documentation are included in the purchase of the display.

Two subscriptions will be available with the 4640 Universal Display + AutoTrac Activation:

• 4640 Premium 3.0 1-year subscription
  • Enables John Deere Section Control, Data Sync, AutoTrac RowSense™, and In-Field Data Sharing functionality for 1 year
• 4640 Automation 3.0 1-year subscription
• Enables Data Sync, John Deere Section Control, AutoTrac RowSense, In-Field Data Sharing, AutoTrac Turn Automation, AutoTrac Implement Guidance (passive guidance), and Machine Sync functionality for 1 year

Subscription-based precision ag offerings provide the following benefits:

• Lower cost of entry to get started with display and subscriptions
• Ability to try new applications for a year without having to commit to a permanent software license
• Ability to match the cost of use with the revenue generated in the same fiscal year
• Flexibility in selecting the level of subscription that best fits the needs of the business without the expense of a one-time software license purchase

The Gen 4 Extended Monitor provides a secondary monitor solution for those producers who want two monitors to manage their machine and precision ag applications on their 4640 Universal Display. Adding the second monitor allows producers in display-intensive operations the ability to view and adjust more of their operations at once.



Leveraging the 4640 Universal Display with Extended Monitor provides the following benefits:

• One easy-to-use system. Make adjustments on the go with either monitor in one operating system while having direct access to more run pages and information at all times.
• The 4640 Universal Display is built on a foundation of making it easy to use for operators. Two monitors from the same system eliminates the potential for mismatched information and the need for separate software updates for different displays.
• Maximize uptime and minimize setup time with quick and easy plug-and-play over the traditional dual-display set-up steps.
• Customize the in-field office to increase viewable access to the 4640 Universal Display run pages as well as the flexible mounting location capability of the additional monitor.
• Avoid costly mistakes during product application through direct access to information and adjustments.

This is the compatible equipment approved with the software update 19-1 release, and is subject to change with newer software updates. To ensure complete and proper compatibility, the most current version of implement control unit software, Gen 4 Display software, or compatible farm management information software (FMIS) should be used. Non-current software versions will require an update before support can be provided. Unapproved software version configurations will not be supported.

The software update 19-1 release is only compatible with 4600 CommandCenter™ v2 processors. Software update 17-2 is the last release that was compatible with 4600 v1 processors.

Server serial numbers are as follows:

• v1 = RWG prefix
• v2 = PCG prefix

Machine compatibility

John Deere Large Ag Tractors

John Deere Large Ag Tractors (list of all automatically detected machines)	Model year	CommandCenter™ display		Universal Display
		4600 v2	4200	4640	4240
9R/9RT/9RX Series	2018 and newer	X	---	X	X
9R/9RT/9RX Series	2015 - 2017	*	---	X	X
9R/9RT	2012 - 2014	---	---	X	X
9030/9030T Series	2008 - newer	---	---	X	X
8R/8RT Series	2018 - newer	X	---	X	X
8R/8RT Series	Mid-2014 - 2017	*	---	X	X
8R/8RT Series	2010 - 2013	---	---	X	X
8030/8030T Series	2006 and newer	---	---	X	X
7R Series	2018 and newer	X	X	X	X
7R Series	2014 - 2017	*	---	X	X
7R Series	2012 - 2013	---	---	X	X
7J Series	2018 and newer	---	---	X	X
7030 Series	2007 and newer	---	---	X	X
7030 Series (Large Frame)	2007 and newer	---	---	X	X
6030 and 7030 Series (Small Frame)	2006 and newer	---	---	X	X
6R Series	2018 and newer	X	X	X	X
6R Series	2015 - 2017	*	---	X	X
6M Series	2013 and newer	---	---	X	X
6J Series	2018 and newer	---	---	X	X
5R Series	2019 and newer	---	---	X	X

*NOTE: For latest Precision Ag functionality, update machines equipped from the factory with v1 processor to v2.

John Deere Nutrient Applicators

John Deere Nutrient Applicators	Model year	CommandCenter		Universal Display
		4600 v2	4200	4640	4240
F4365 High-Capacity Nutrient Applicator	2017 and newer	X	---	---	---

John Deere Self-Propelled Sprayers

John Deere self- propelled sprayers	Model year	CommandCenter		Universal Display
		4600 v2	4200	4640	4240
4 Series Sprayers	2018 and newer	X	---	---	---
4 Series Sprayers	2013 - 2017	---	---	X	---
4940	2012 - 2014	---	---	X	---
4630	2008 and newer	---	---	X	---
4730	2008 and newer	---	---	X	---
4830	2008 - 2014	---	---	X	---
4930	2006 - 2013	---	---	X	---
R4040i	2019 and newer	---	---	X	---
R4050i	2019 and newer	---	---	X	---
Hagie™ sprayers	2014 and newer	Compatible with GreenStar™ 3 2630 Displays and 4640 Universal Displays*

*NOTE: When using the 4640 Universal Display on a Hagie Sprayer, additional mounting and harnessing may be required. Current John Deere/Hagie field kits only offer GreenStar 3 2630 Display parts.

• 4640 Ram™ Mount - SJ34503
• 4640 power/video harness - BPF11527 (1-3 video plus machine power), PF90687 (machine power only)
• AutoTrac™ Vision/AutoTrac RowSense and multi-rank section control are not supported on Hagie at this time

John Deere Self-Propelled Forage Harvesters (SPFH)

John Deere Self-Propelled Forage Harvesters	Model year	CommandCenter		Universal Display
		4600 v2	4200	4640	4240
9000 Series SPFH	2019 and newer	---	---	X	---
8000 Series SPFH	2015 and newer	---	---	X	---

John Deere combines

John Deere combines	Model year	CommandCenter		Universal Display
		4600 v2	4200	4640	4240
S700 Series	2018 and newer	X	---	---	---
S430 and S440	2017 and newer	X	---	---	---
S600 Series	2012 - 2017	---	---	X	X
S540 and S550 Series	2012 and newer	---	---	X	X
T-Series	2012 and current	---	---	X	X
W-Series	2012 and current	---	---	X	X
70 Series*	2008 - 2013	---	---	X	X

*NOTE: If using 4640 Universal Display, AutoTrac RowSense on a 70-Series Combine is not compatible.

NOTE: Competitive equipment may be compatible with 4640 Universal Display and 4240 Universal Display. For additional compatibility information, see AutoTrac Universal 200, AutoTrac Universal 300, or AutoTrac Controller in the Ag Sales Manual.

Equipment compatibility

John Deere planters

SeedStar™ 4HP planters are only compatible with 4600 CommandCenter displays with a version 2 (v2) processor and 4640 Universal Displays. Displays should be running Gen 4 OS software version 10.9.79-124 or newer and the most current version of Tractor Applications to be compatible with SeedStar 4HP planter applications. Additionally, dual-display mode is not available for use with SeedStar 4HP planter applications. If multiple monitors are needed, utilize a Gen 4 Extended Monitor.

The SeedStar 2 configuration below is available only on factory-installed model year 2011 and newer planters and may be field-installed on model year 2009 and 2010 planters. Green PM/PA controllers (factory-installed on model year 2009 and 2010 planters) are not supported with a Gen 4 display.

For John Deere dealers: the Service ADVISOR™ tool is needed to update SeedStar 2, SeedStar XP, and SeedStar 3 HP software. Documentation is not supported when using a rate controller to control row clutches on a John Deere planter.



John Deere planters	Control unit name	Software version	CommandCenter display		Universal Display
			4600 v2	4200	4640	4240*
SeedStar 2	Black PM1	22.0	X	X	X	X
	Black PA1, (if available PA 2)	22.0	X	X	X	X
	Green PM1	10.11	---	---	---	---
	Green PA1 (if available PA 2)	10.11	---	---	---	---
SeedStar XP	Black PM1	22.0	X	X	X	X
	Black PA1, (if available PA 2)	22.0	X	X	X	X
	PM2	7.0	X	X	X	X
SeedStar 3 HP	Planter Main A (PCMA)	5.0	X	X	X	X
	Planter Main B (PCMB or MMC)	8.0	X	X	X	X
	Row-unit Controller (RUC)	2.0	X	X	X	X
	EPG	3.0	X	X	X	X
SeedStar 4HP	Planter Apps	10.2.170-14	X	---	X	---
	Planter Main A (PCMA)	4.0	X	---	X	---
	Planter Main B (PCMB or MMC)	3.0	X	---	X	---
	Row-unit Controller (RUC)	2.0	X	---	X	---
	EPG	2.0	X	---	X	---

*NOTE: For implements requiring ground speed input (radar), utilizing a 4240 Universal Display may require an additional 4240 Radar speed kit.

John Deere Air Seeders

The C850 Air Cart requires a 4600/4200 CommandCenter Display or a 4640/4240 Universal Display. GreenStar 3 2630 monitors are not supported. Additionally, C850 Air Carts and AutoTrac Implement Guidance (passive) are compatible with software update 18-2 and newer.



John Deere Air Seeder	Model year/control unit name	Software version	CommandCenter		Universal Display
			4600 v2	4200	4640	4240*
C850 Air Cart	Cart Master Controller (CMC)	12	X	X	X	X
	Mini Tank Controller (TXC)	6	X	X	X	X
	Front, Middle, Rear Tank Controller (TCU)	6	X	X	X	X
1870 Seeding Tool - TruSet™ system	2017 and newer (IDC)	5.0	X	X	X	X
1870 Seeding Tool - RelativeFlow™ blockage sensors	2017 and newer (BMU)	4.0	X	X	X	X
1910 Air Cart - ground drive	2009 and newer	3.0	X	X	X	X
1910 Air Cart - hydraulic drive	2013 and newer	8.00	X	X	X	X
Seeding tools with air-run blockage - primary blockage	2009 and newer (BMU)	12.0	X	X	X	X
Seeding tools with air-run blockage - air-run blockage	2009 and newer (BMU)	12.0	X	X	X	X
	Member Module	5.0	X	X	X	X
1990 Central Commodity System (CCS™)	2009 and newer (BMU)	12.0	X	X	X	X

*NOTE: For implements requiring ground speed input (radar), utilizing a 4240 Universal Display may require an additional 4240 Radar speed kit.

John Deere Tillage

John Deere Tillage	Control unit name	Software version	CommandCenter		Universal Display
			4600 v2	4200	4640	4240
AccuDepth™ cultivator	Implement Depth Control (IDC)	11	X	X	X	X
2730 with TruSet	Tillage Controller 1 (TC1)	1.65H8	X	X	X	X
2230 with TruSet	Tillage Controller 1 (TC1)	2.74J7	X	X	X	X
2330 with TruSet	Tillage Controller 1 (TC1)	2.34J7	X	X	X	X
2620/2630 with TruSet	Tillage Controller 1 (TC1)	2.94J7	X	X	X	X
2720 with TruSet	Tillage Controller 1 (TC1)	1.22H7	X	X	X	X
2660VT with TruSet	Tillage Controller 1 (TC1)	1.01J8	X	X	X	X

*NOTE: For implements requiring ground speed input (radar), utilizing a 4240 Universal Display may require an additional 4240 Radar speed kit.

John Deere Round Balers

John Deere Round Balers	Control unit name	Software version	CommandCenter		Universal Display
			4600 v2	4200	4640	4240
0 Series	Baler Automation	10.07	X	X	X	X
9 Series Premium	Baler Automation	7.16	X	X	X	X
V451R/V461R	Baler Automation	11.5	X	X	X	X

John Deere Large Square Balers

John Deere Large Square Balers	Control unit name	Software version	CommandCenter		Universal Display
			4600 v2	4200	4640	4240
0 Series	Gen 4 VT	3.04	X	X	X	X
1 Series	Gen 4 VT	5.07	X	X	X	X

Precision Ag Technology software compatibility

John Deere control units	Control unit name	Software version	CommandCenter display		Universal Display
			4600 v2	4200	4640	4240
*StarFire 6000 Receiver	---	4.10J	X	X	X	X
StarFire 3000 Receiver	---	2.32H	X	X	X	X
*Modular Telematics Gateways (MTG) - 3G	---	21.03	X	X	X	X
*MTG - 4G	---	24.01	X	X	X	X
GreenStar Rate Controller	---	3.60F	X	X	X	X
GreenStar Rate Controller Dry	---	2.11A	X	X	X	X
*John Deere Rate Controller 2000	---	1.12C	X	X	X	X
*AutoTrac Universal 200	---	2.30A	---	---	X	X
*AutoTrac Universal 300	---	3.22O	---	---	X	X
AutoTrac Controller 250	---	11933B	---	---	X	X
*AutoTrac Controller - Deere	---	1.11B	---	---	X	X
AutoTrac Controller - Raven	---	3.2.29	---	---	X	X
AutoTrac Controller - Reichhardt®	---	SW 1.3	---	---	X	X
AutoTrac RowSense™	RG3	AKK15783E	X	---	X	---
AutoTrac Vision	VGC	4.01L	X	---	X	---
Active Implement Guidance (VT)	Application 1100	3.10A	X	---	X	---
iGrade™	Application 1100	3.10A	X	---	X	---
Distance Trip	Application 1100	3.10A	X	---	X	---
Gen 4 Extended Monitor			X	---	X	---
Wireless Data Server	Wireless Data Server	1.484.1 (Planting 7.471.1 (Application)	X	---	---	---
Mobile Data Transfer	MyTransfer™ App	3.8.6 (iOS) 3.8.5 (Android)	X	X	X	X
Connect Mobile app	Connect Mobile App	6.0.0 or newer	X	---	---	---
Connect Mobile server	Connect Mobile server	5.2.57-5	X	---	---	---
Mobile Weather	Application 1120	3.10A	X	---	X	---

*NOTE: See additional information below.

StarFire Receivers

StarFire Receivers can be updated in the following ways:

• Receiver USB port (available only for StarFire 6000 Receivers)
• Gen 4 display USB port
• Remote software updates application (in ISOBUS VT app)

Additionally, StarFire iTC Receivers are no longer supported with software update 2017-1 and newer software. StarFire 6000 Receivers require software version 3.80F or higher when used with AutoTrac Implement Guidance.

John Deere Operations Center

Gen 4 data is only compatible with the John Deere Operations Center.

Activations/subscriptions required for Wireless Data Transfer (WDT) and Data Sync:

• A 4600 CommandCenter Premium activation, 4200 CommandCenter Section Control and Data Sync activation, a 4640 Premium subscription, or 4240 Section Control and Data Sync
• JDLink™ Ultimate + WDT + Remote Display Access (RDA) or JDLink Connect subscription

To use RDA on a Gen 4 CommandCenter Display with a GS3 2630 Display connected in the same machine, GS3 2630 software version 3.22.1095 (SU2014-1) or higher is required (for 4600 CommandCenter Display and 4640 Universal Display only).

GreenStar Rate Controller and GreenStar Rate Controller Dry

GreenStar Rate Controller Dry is supported with display software update 2017-2 and newer. The 4600 and 4200 CommandCenter Displays and 4640 and 4240 Universal Displays support documentation and section control of up to five GreenStar Rate Controller units.

To update the GreenStar Rate Controller and GreenStar Rate Controller Dry, utilize a Gen 4 Display USB port. John Deere dealers can also utilize Service ADVISOR™. GDC 2.11A was the last software version available through Software Manager. GDC 2.20A has been available since spring 2015 and contains diagnostic language updates. This software can only be obtained through Service ADVISOR.

John Deere Rate Controller 2000

The Gen 4 Displays and John Deere Rate Controller 2000 can support documentation and control up to five operations. ISO controllers such as SeedStar on John Deere planters can be used with a John Deere Rate Controller 2000 that is documenting additional operations. Additionally, Gen 4 Displays can document shared sections with a John Deere Rate Controller 2000. An example of this would be John Deere Rate Controller 2000 used with a Raven Sidekick™ ICD direct injection pump.

For more information on Gen 4 displays and John Deere Rate Controller 2000 compatibility, please visit the John Deere Ag Sales Manual.

AutoTrac™ Vision

AutoTrac Vision Guidance Camera 19-1 software 4.01L is only compatible with RowGuidance 3 Controller software AKK15783F and GreenStar 3 2630 17-1 software 3.34.1345 or newer and Generation 4 18-1 software 10.10.404-345 or newer.

AutoTrac Universal 200, AutoTrac Universal 300, and AutoTrac Controller

AutoTrac Universal 200, AutoTrac Universal 300, and AutoTrac Controllers are for use with the 4640 Universal Display and 4240 Universal Display. Please see the AutoTrac Universal 200, AutoTrac Universal 300, or AutoTrac Controller Sales Manual for exact model compatibility.

ISOBUS implements

Gen 4 Displays are compatible with one Agricultural Industry Electronics Foundation (AEF) certified ISOBUS implement; AEF-certified ISOBUS implements with Task Controller Section Control (TC-SC) functionality and AEF certification for TC-SC include sprayers, fertilizer spreaders, planters, seeders, manure applicators, etc. For third-party FMIS compatibility, reference the John Deere Operations Center.

A software update performed by an authorized ISOBUS implement dealer may be required to obtain compatible software. ISOBUS implements must be certified through the Agricultural Industry Electronics Foundation (AEF) to be recognized by the Gen 4 CommandCenter display. Visit www.aef-online.org for more information; visit www.aef-isobus-database.org for an active list of compatible implements.

ISOBUS implements with VT4 are now supported by Gen 4 Displays. Gen 4 Displays still support older VT versions (example: VT2 and VT3). If an implement is not loading after updating to Gen 4 software update 2017-2 (or newer on 4600 CommandCenter v2 processors), it is recommended that the implement manufacturer be contacted to get a software version that is either VT3 or VT4.

Extended monitor

When using an extended monitor with equipment visualized in ISOBUS VT Viewer and applying VT run page modules to two run pages shown at the same time, the extended monitor’s VT modules will not update. To mitigate this, only view VT modules on one run page at a time.

Connect Mobile

For complete Connect Mobile compatibility, please reference Connect Mobile configurations.

Implements without controllers

Implements without controllers can be documented as a stand-alone operation or with a rate controller from John Deere. Additionally, multiple implements without controllers cannot be documented together.

AutoTrac Implement Guidance (passive)

AutoTrac Implement Guidance is compatible with the SeedStar 4HP planters with Easy Fold. The following are required for functionality:

• Mid model year 2019 planter apps (through StellarSupport™)
• Mid model year 2019 planter PMC software (through SDS and can be pushed using SAR with an MTG)

AutoTrac Implement Guidance is compatible with C850 Tow-Behind Air Carts with software update 18-2. Guidance is compatible with C850 Air Carts with software update 18-2.

AutoTrac Turn Automation

AutoTrac Turn Automation is available on the 4600 CommandCenter Display and is compatible with the 4640 Universal Display installed in 30 Series Tractors and newer. Additionally, AutoTrac Turn Automation is compatible with Easy Fold on SeedStar 4HP planters with 19-1 software update and mid model year 2019 planter software update.

Camera compatibility

Voyager® cameras are supported on Gen 4 Displays. All other camera types are not supported.

Non-John Deere Precision Ag

4600 CommandCenter v2 and the 4640 Universal Display are compatible with the following RS-232 configurations with software update 18-2 and newer:

• GPS receivers with serial port connection
  • Will not enable AutoTrac guidance functionality
• Raven RS-232 control units (440, 450, or 660) on tractors configured as implement-based applications
• Gen 4 displays are not compatible with the DN345 Drawn Dry Spreader at this time.

Machine Communication Radio (MCR)

Gen 4 displays are not compatible with MCR.

APEX™ software

• Gen 4 display work data is not compatible with and cannot be viewed in APEX software.
• USB files including pre-assigned APEX tasks and iTEC™ Pro sequences will not import into Gen 4 displays.

NOTE: Gen 4 data is only compatible with the John Deere Operations Center. All Gen 4 activations are machine specific and cannot be transferred to a different machine. If not using WDT, an 8- to 32-GB USB is required to transfer data to and from the Gen 4 Display. Implement settings are display specific and cannot be imported or exported from the Gen 4 Display.

RAM is a trademark of National Products Inc. Hagie is a trademark of Hagie Manufacturing Company, LLC and similar to John Deere branded equipment, John Deere will support Hagie equipment. Reichhardt is a trademark of Reichhardt GmbH Steuerungstechnik. Sidekick is a trademark of Raven Industries, Inc. Voyager is a trademark of ASA Electronics, LLC.

The ability to remotely view the machine’s settings, performance, yield, acres, and other information is highly valuable when managing or supervising an operation. It is imperative that the operator’s equipment keeps running productively and that the grower or dealer is enabled to provide remote support to improve the quality and efficiency of work while saving time and money. RDA enables an operator to get help with machine settings or identify a problem and receive assistance in navigating through the steps needed to resolve the issue.

Value in brief:

• Improved confidence in precision farming applications for all operators
• Increased productivity with quicker problem resolution
• Improved service from John Deere dealer and support personnel
• Increased profitability by keeping equipment moving
• Reduced labor and travel costs

Dual-display connection capability



Dual-display connection allows both the GreenStar 3 2630 Display/4640, and 4240 Universal Display and Generation 4 CommandCenter Displays to be viewed during one RDA session. The user simply toggles between the tabs in the browser or in a mobile device. View exactly what the operator sees on the GreenStar 3 2630 Display, 4640 and 4240 Universal Display, and Generation 4 CommandCenter from almost any internet-connected device. RDA is available on both the 4600 and 4200/4100 CommandCenter Displays. RDA enables quick communication around settings or messages on the displays. This allows improved communication between the equipment operator in the field and an offsite farm manager or dealer to help with machine settings, quick remote training, support, or any other needs that may arise in the field.



RDA provides the following benefits to the users:



Performance

• Remotely help or train operators with machine settings and precision farming applications to improve productivity and quality of work done.

Uptime

• Increase productivity with quicker problem resolution
• Improve remote support from John Deere dealers and support personnel to assist operators with machine set up and settings to ensure peak productivity

Cost of operation

• Reduce labor and travel costs with improved remote support for quicker and accurate problem resolution
• Increase profitability by ensuring optimized machine settings for maximum efficiency

Requirements:

• Compatible displays:
• John Deere 4640 or 4240 Universal Display with Ethernet cable
• GreenStar 3 2630 Display with Ethernet cable
• Generation 4 CommandCenter with Ethernet cable connected
• RDA session is not compatible for viewing on Gen 4 Extended Monitor.
• JDLink™ Connect or JDLink Access plus RDA subscription
• Partner setup within Operations Center or JDLink web interface needs to be completed by both users to share information
• An RDA session can be started from almost any internet-connected computer or mobile device, including MyOperations™ and JDLink mobile apps for iOS® and Android™ systems

Functionality:

• Single-display view of compatible display in one machine
• Dual-display view (ability to see both Gen 4 CommandCenter and GreenStar 3 2630 Display or 4640/4240 Universal Display on one machine) with ability to quickly switch views between the two displays
• View multiple machines at once from a desktop or laptop computer

iOS is a trademark of Cisco Technology, Inc. used under license by Apple, Inc. Android is a trademark of Google LLC.

Wirelessly transfer data

John Deere Wireless Data Transfer (WDT) helps producers save time, money, and increase productivity through telematics-enabled data transfer via JDLink™ Connect wireless telematics. Wirelessly transfer setup, prescription, and documentation files securely between office, mobile devices, and 4640/4240 Universal Display or 4600/4200 CommandCenter™ Display, eliminating the need for USB transfer. This increases producer uptime and productivity, reducing the risk of data loss, and enabling easy data sharing and more timely decision making.

Through the John Deere Operations Center, producers are in control and can easily share files with a John Deere dealer and other trusted advisers.

Wireless Data Transfer

With WDT, producers can manually send data wirelessly to the John Deere Operations Center; data is available to review in Files and then later in Field Analyzer and the MyOperations™ mobile app. To enable WDT on a Gen 4 Display, producers must manually navigate to the Menu, System, File Manager, Export and then begin selecting the data they want to send to the John Deere Operations Center.

NOTE: WDT on a Gen 4 Display does not include any auto send triggers similar to the GreenStar™ 3 2630 Display which automatically sent data after a change in client, farm or field.

Set-up files and prescriptions can be transferred wirelessly from the Operations Center to the 4600/4200 CommandCenter or 4640/4240 Universal Display anytime, eliminating trips to the machines’ locations and allowing for more timely completion of field operations. Modified setup files and prescriptions will not overwrite files currently on the Gen 4 Display; only new or modified information will be imported from the setup file.

Requirements for WDT

1. An active JDLink Connect subscription on a Modular Telematics Gateway (MTG)
2. Organization set up in the John Deere Operations Center

Data Sync

Data Sync automatically sends documentation data to John Deere Operations Center every 30 seconds. Producers have the opportunity to analyze data from completed fields or view where field work is in process, making it easier for producers to make operational decisions. Data is available to analyze from any internet-connected device to make important production decisions and give operations the ability to invoice work recently completed. There are triggers that make the data available within the John Deere Operations Center including: after a field has been completed, after new work has started, or a half hour after field work has been stopped.

Requirements for Data Sync

1. An active JDLink Connect subscription on an MTG
2. Gen 4 CommandCenter Premium or Automation activation; 4640 Premium or 4640 Automation subscription; 4200 CommandCenter Data Sync and Section Control activation; or 4240 Data Sync and Section Control subscription
3. Organization set up in the John Deere Operations Center

The Generation 4 CommandCenter™ and Gen 4 Universal Displays display are an AEF ISOBUS compatible display.

An easy plug and play between implements, displays, tractors, and other products is required today in daily business. This is why within agriculture and forestry, an industry standard, ISOBUS, is used for communication between these products.

From the ag industry, the Agricultural Industry Electronics Foundation (AEF) was initiated in 2008 to have a common forum among manufacturers to define the ISOBUS standard further, define and conduct ISOBUS tests, accelerate adoption, label compatible products, and to communicate this to dealers and customers. John Deere is one of the seven founding members of AEF and is very engaged in the organization.

To better ensure ISOBUS compatibility, the AEF developed new functionalities, i.e., auxiliaries (AUX) and Task Controller Section Control (TC-SC,) in addition to the well-known universal terminal (UT). They are also the basis for the certification of ISOBUS products. An ISOBUS functionality can be described as an independent ISOBUS product and the concept is extendable for later additions of functionalities.

Gen 4 CommandCenter and Gen 4 Universal Displays support the following ISOBUS features:

• 4600/4200 CommandCenter and 4640/4240 Universal Display:
  • Universal Terminal (UT)
    -> ISOBUS sprayer, seeder, planter, fertilizer spreader, manure applicator, and many other implements can be operated through the UT functionality.
  • Task Controller Section Control (TC-SC)
    -> With TC-SC, ISOBUS compliant implements like sprayers, seeders, planters, fertilizer spreaders, and manure tankers can be used with automatic Section Control.
  • Task Controller Basic (TC-Bas)
    -> With TC-Bas, documentation with ISOBUS compliant implements in the standard data format of ISOXML is possible. Also, totals like area, amount, etc. are recorded directly from the implement.
  • Task Controller geo-based (TC-Geo)
    -> With TC-Geo, location-based documentation with ISOBUS compliant implements in the standard data format of ISOXML is possible. Also, Client, Farm, Field, Boundary, Products, Crops (incl. Varieties), Prescriptions, Operators, Tasks, Comments are recorded directly from the implement.
  • Auxiliary Control (AUX-N)
    -> With AUX-N, additional control elements that facilitate the operation of complex equipment, such as a joystick; also, the capability of controlling implement functions by means of an additional control element.

To stay up to speed on which implement and product complies with which ISOBUS features, please visit the AEF website and sign up for the database. It combines tractor, sprayer, and display combination to determine compatibility.

Documentation of implement-based field operations remains important regardless of controller brand. The 4600 CommandCenter™ Display and 4640 Universal Display can communicate with select third-party controllers and third-party global positioning systems (GPS). Collectively, the system supplies the operator with instantaneous data while viewing the display. This information can be viewed in the John Deere Operations Center software for further analysis and reporting.

Third-party RS232 GPS compatibility enables documentation and Section Control on the 4600 CommandCenter and 4640 Universal Display; AutoTrac™ functionality is not compatible with third-party RS232 GPS.

When using a Raven controller, the Gen 4 display can run in conjunction with map-based prescriptions.

Collected data may include:

• Farm name
• Field name
• Application/seeding rates
• Variety/chemical name
• Totals
• Crop type
• Machine
• Implement
• Operator name
• Field boundaries
• Weather conditions
• Soil conditions

Compatible controllers:

• Raven SCS 440™ controller
• Raven SCS 450™ controller
• Raven SCS 660M™ controller

Compatible GPS:

• Third-party GPS receivers

Required components:

• Compatible controller
• Gen 4 4600 CommandCenter v2 Processor or 4640 Universal Display
• StarFire™ 3000 Receiver, StarFire 6000 Receiver, or third-party (GPS) receiver
• John Deere Operations Center
• Third-party controller kit

SCS 440, SCS 450, and SCS 660M are trademarks of Raven Industries, Inc.

In order to utilize over-the-air controller reprogramming, software update 18-1 needs to download in the background:

• Need 17-2 to download 18-1 in background
• Download in background is only for the Gen 4 operating system
• Controllers download and install in the foreground

Once software update 18-1 is installed, users are able to reprogram precision farming controllers (AMS controllers) over the air:

• GreenStar™ Rate Controller (liquid)
• StarFire™ 3000 Receiver
• StarFire 6000 Receiver
• AutoTrac™ Universal 200 steering system
• Application Controller 1100
  • iGrade™ system
  • Active Implement Guidance
  • Distance Trip
• Over-the-air activations

Precision farming Ethernet reprogramming

• The Gen 4 display can perform other-the-air or USB reprogramming of the StarFire 6000 Integrated Receiver over Ethernet.
• This reduces StarFire 6000 Integrated Receiver reprogramming times from about 30-45 minutes to about 5-10 minutes.

What is over-the-air reprogramming of precision farming devices

Precision farming devices are attachable components (such as the StarFire 6000 Receiver, GreenStar Rate Controller, and AutoTrac Universal steering system) that complete or extend a producer’s precision farming solutions.

Producers have the power to reprogram every* AMS component connected to their vehicle, over the air, without the need for a USB stick or separate download program:

• No more need for a USB stick
• No more need for a Mac® or PC laptop
• No more need for GreenStar Live Update
• No more need for the MyJohnDeere™ portal Software Manager
• No more need to remember to bring all of this hardware, nor to remember how to use all of these different tools

Over-the-air reprogramming allows for fast, simple, and convenient updates that offer improved performance and new features when producer’s need them, when they want them, and when they are ready for them.

*NOTE: Other AMS displays (such as the Original GreenStar Display, GreenStar 2 1800, GreenStar 2 2600, and GreenStar 3 2630) cannot be reprogrammed by the Gen 4 display. Modular Telematics Gateway and non-AMS components, such as the tractor radio, are not updateable by the Gen 4 display.

How it works

Ensure the Gen 4 display is connected to one of the following:

• A 4640 Universal Display with an active Wi-Fi connection
• An MTG connected to an active Wi-Fi connection
• An MTG in good cellular coverage
  • NOTE: An active JDLink™ subscription is required to use the MTG cellular connection.

The Gen 4 display’s internet connection status can be review from Status Center or the Wireless Settings application.

Ensure the Gen 4 display is connected to the precision farming device that is to be reprogrammed. The Gen 4 display’s connection status to the precision farming device can be reviewed by looking for the device in the ISOBUS VT application or in the Diagnostics Center application.

• From the Gen 4 display, open Software Manager:
• Menu > System tab > Software Manager
• Check for updates online > for other devices
• Review available updates
• Select the update that should be pushed to the precision farming device.
• Click install.
• Keep the key switch in the ON or ACCESSORY position during reprogramming.
• An active internet connection is required during the first pinwheel; users can move into more remote areas after the download pinwheel completes.

Mac is a trademark of Apple Inc.

Protect investments with a security PIN code

Producers have asked for a way to better secure their John Deere devices from improper use and thefts. With the 19-1 software update, John Deere added an enhancement to the user interface of the Gen 4 4240 and 4640 Universal Displays.

With this solution, producers have the choice to enable the security PIN code feature and set up a unique four-digit PIN code to enable and unlock their device, similar to a mobile device. Enabling this code will allow only users with the defined PIN code to access the device when it powers on.

This feature has two levels of access that can be defined. An administrator PIN code must be defined to enable the feature and should be used by the farm manager. A second optional operator PIN code can be defined for usage by operators of the machine.

Overview

PIN code level	Functions	Main user
Administrator PIN code	Enable/disable security PIN code feature Initialize and change of administrator PIN code Create new operator PIN code Reset operator PIN code Unlock device	Farm manager
Operator PIN code	Unlock device	Operator
Master unlock code	Resets the security PIN codes	Farm manager
