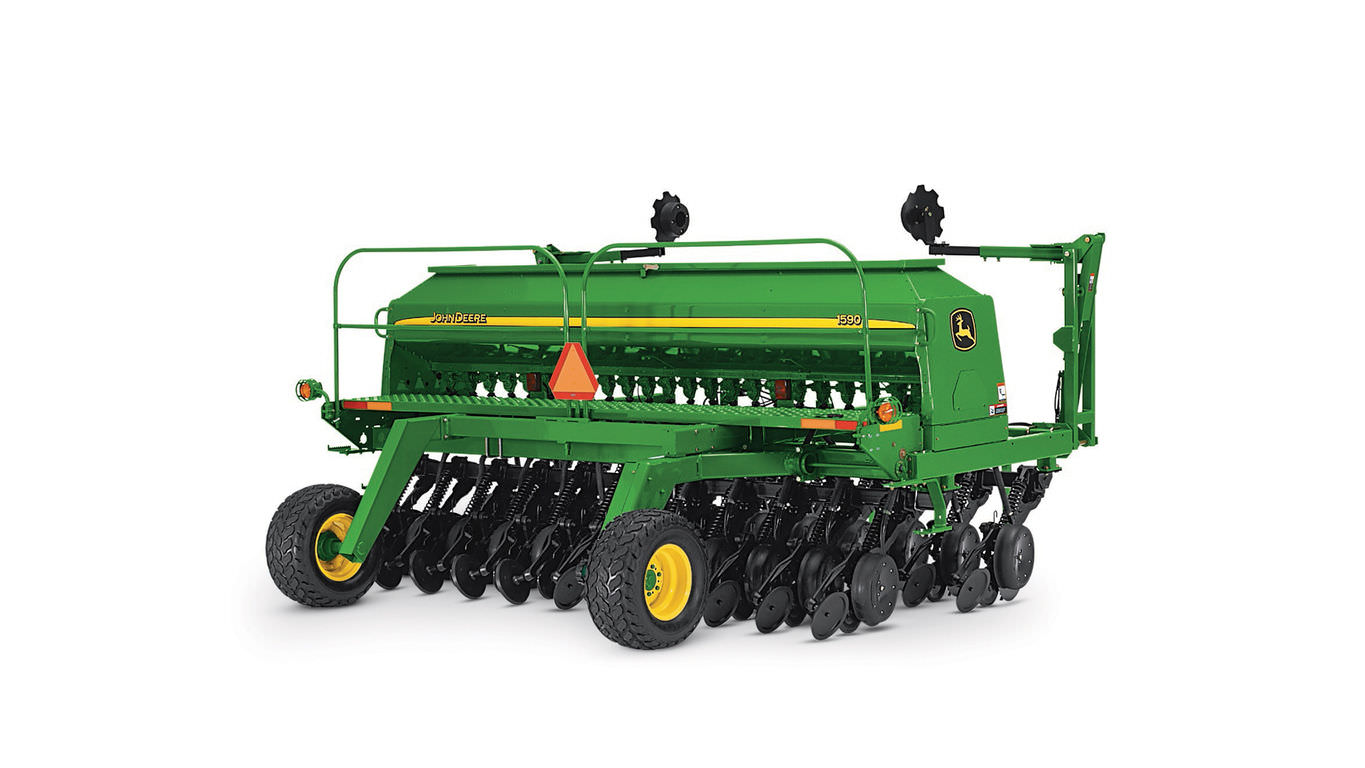

1590 No-Till Drill

Seed placement with 90 Series Opener

1590 series downpressure

Single-disk no-till openers are included in base equipment. The single-disk openers are mounted on one rank on the 15-in. row spacing single rank units and on two ranks on the 7.5-in. and 10-in. row-spacing units. The single-disk openers provide consistent and accurate seed placement.

The single-disk openers are gang mounted and are hydraulically raised and lowered. The hydraulics also work to provide a wide range of downforce settings for the openers.

The active hydraulics work in conjunction with the opener spring to provide an adjustable range of 165 lb to 400 lb of down pressure per opener to penetrate hard soils and heavy residue.

The down pressure is easily adjusted with the pressure valve located on the front of the mainframe, giving the operator the ability to quickly adjust, or dial in, the down pressure as operating conditions change.

For additional ballast in hard-to-penetrate conditions, tractor suitcase weights may also be added to obtain maximum down pressure per opener.

The no-till openers work not only in no-till conditions, but also in clean-till conditions. There are 2 in. of free travel in the opener before spring down pressure takes over, allowing the opener to move over individual rocks and minimizing the chance of the gauge wheels bulldozing soil in soft or mellow conditions.

Secondly, the opener spring will then travel a maximum of 8 in. up or 6 in. down before the hydraulics react to uneven seedbeds.

Lastly, the cylinders will allow the openers to travel up or down an additional 16 in. with active hydraulic down pressure to follow the ground.  The hydraulics will give the openers additional pressure when needed or allow the openers to go into relief if the pressure becomes too high.

Seedbox

Seedboxes have large capacity for longer intervals between stops for refilling.

Plain grain or combination grain/fertilizer seedboxes are available to match the producer's needs and crops.

The versatile grain/fertilizer box with 7.5-in. row spacing can be set for 100 percent grain or 60 percent grain/40 percent fertilizer.

The bulkheads in the seedbox reduce material shifting in the box for increased seeding efficiency.

The sight glass located near the end of the box on combination grain fertilizer drills allows the operator to view seed level at a glance.

Capacities with grass seed attachment

Electronic population rate control

With seed prices on the rise, producers want the ability to monitor and control seed populations on-the-go.

The electronic population rate control (EPRC), in base equipment on the 1590 drill, allows producers to adjust the population rate right from the convenience of their tractor cab.

The system:

• Features an in-cab rocker switch to adjust the electric motor that controls the population rate
• Is manually adjusted-- the operator must hold down the adjustment switch until the desired rate is met
• Can be overridden by pushing back on the motor to allow the producer to make a manual adjustment to the rate if needed

NOTE: To give the producers the ability to monitor the population rate on the go, it is highly recommended they equip the unit with ComputerTrak™ or SeedStar™ population monitoring.

NOTE: One system is used with 10-ft and 15-ft drills.  The 20-ft models require two systems.

Seed tube

A long, internally smooth seed tube with a molded elbow is supported at the seed tube support. From there, it is connected to a short convoluted seed tube, allowing product to flow smoothly to the openers and still flex.

The tube flexes to avoid crimping for consistent seed flow. It is made of non-corrosive nylon material for long life. Long tubes are 21.8-in. and short tubes are 4.25-in.

Elbow at meters to angle the seed tube directly to the openers.

The smooth inside diameter provides smooth seed flow from the meters to the furrow openers.

Seed tube with Y-adapter

The combination grain/fertilizer drill with 7.5-in. row spacing features a convoluted tube directing fertilizer from the discharge hole to the top of the steel seed tube at the seed boot. From there, a special Y-adapter lets seed and fertilizer mix before going into the furrow.
